Komatsu WA500-3LK Wheel Loader Air Conditioner (Air Duct) Parts
Komatsu WA500-3LK air conditioner (air duct) parts for machine serial A71001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cab / Controls / Air Conditioner (Air Duct).
Checking current purchase options...

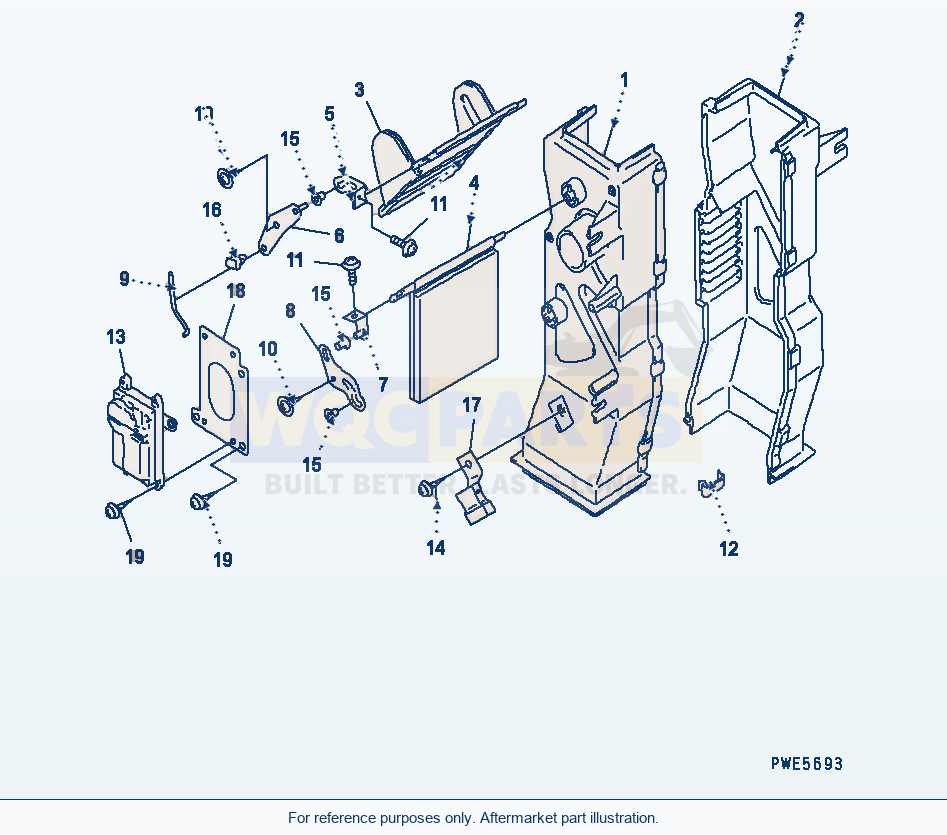

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 20 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | DUCT ASS'YSN: A71001-UP | 2 | Request quote | |||
| 1 | DUCTSN: A71001-UP | 1 | Request quote | |||
| 2 | DUCTSN: A71001-UP | 1 | Request quote | |||
| 3 | DAMPER ASS'YSN: A71001-UP | 1 | Request quote | |||
| 4 | DAMPER ASS'YSN: A71001-UP | 1 | Request quote | |||
| 5 | LEVER,CONTROLSN: A71001-UP | 1 | Request quote | |||
| 6 | LEVER,CONTROLSN: A71001-UP | 1 | Request quote | |||
| 7 | LEVER,CONTROLSN: A71001-UP | 1 | Request quote | |||
| 8 | LEVERSN: A71001-UP | 1 | Request quote | |||
| 9 | SHAFTSN: A71001-UP | 1 | Request quote | |||
| 10 | SCREW,TAPPINGSN: A71001-UP | 2 | Request quote | |||
| 11 | SCREWSN: A71001-UP | 2 | Request quote | |||
| 12 | SPRING,HOLDINGSN: A71001-UP | 8 | Request quote | |||
| 13 | SERVO MOTOR ASS'YSN: A71001-UP | 1 | Request quote | |||
| 14 | SCREW,TAPPINGSN: A71001-UP | 1 | Request quote | |||
| 15 | BUSHINGSN: A71001-UP | 3 | Request quote | |||
| 16 | CLAMPSN: A71001-UP | 1 | Request quote | |||
| 17 | CLIPSN: A71001-UP | 1 | Request quote | |||
| 18 | BRACKETSN: A71001-UP | 1 | Request quote | |||
| 19 | SCREW,TAPPINGSN: A71001-UP | 6 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-3LK Wheel Loader Air Conditioner (Air Duct) Parts
Use the Komatsu WA500-3LK Wheel Loader Air Conditioner (Air Duct) Parts listing to identify aftermarket replacement parts within the cab / controls section. This wheel loader application is listed for machine serial A71001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 20 listed part occurrences, including duct ass'y (reference 425-07-21152), duct (reference ND145820-9610) and duct (reference ND145820-8330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
