Komatsu WA500-6 Wheel Loader Air Conditioner Complete Assembly Parts
Komatsu WA500-6 air conditioner complete assembly parts for machine serial A93001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cab / Controls / Air Conditioner Complete Assembly.
Checking current purchase options...

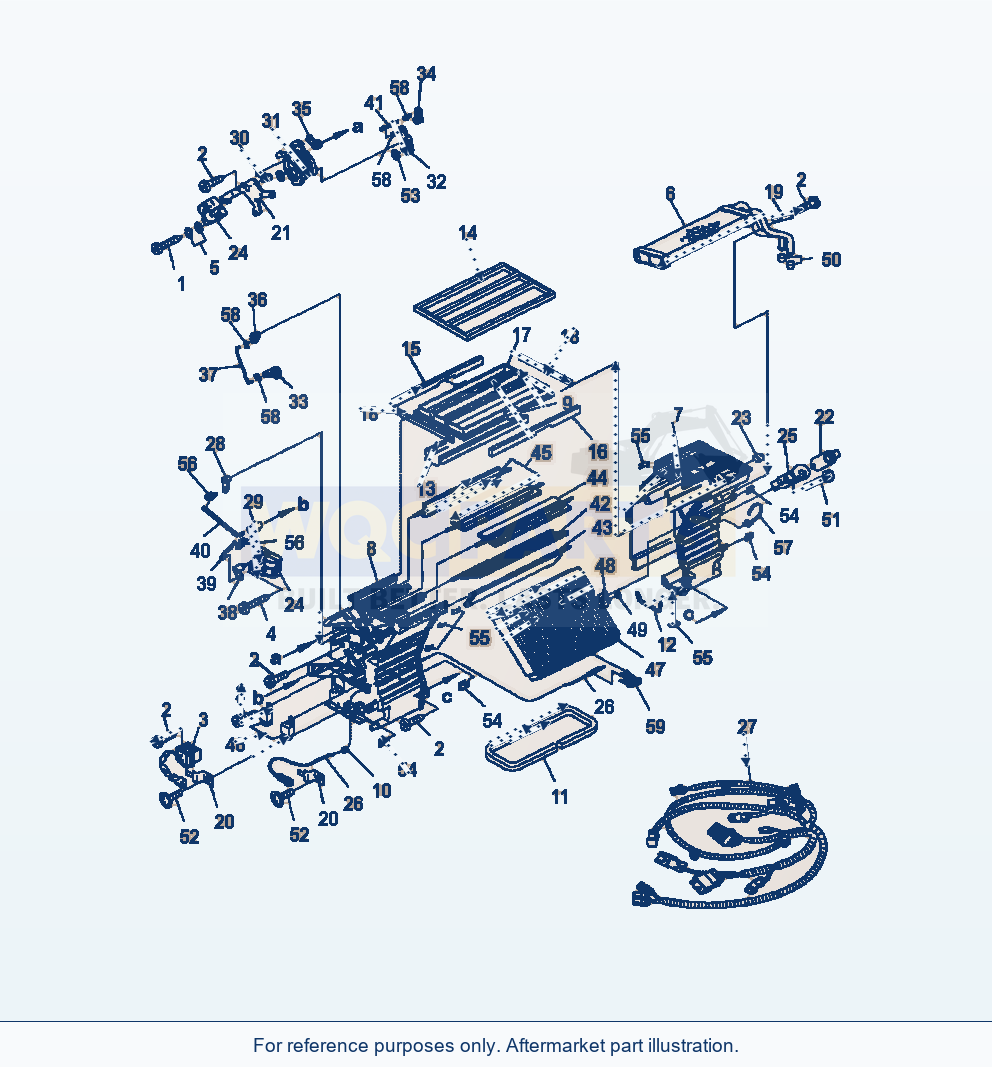

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 60 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | AUTO AIR CONDITIONER ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 1 | BOLTSN: A93001--UP | 3 | Request quote | |||
| 2 | SCREWSN: A93001--UP | 12 | Request quote | |||
| 3 | CONTROLLERSN: A93001--UP | 1 | Request quote | |||
| 4 | SCREWSN: A93001--UP | 3 | Request quote | |||
| 5 | WASHERSN: A93001--UP | 2 | Request quote | |||
| 6 | HEATER CORE ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 7 | CASE ASSEMBLY, R.H.SN: A93001--UP | 1 | Request quote | |||
| 8 | CASE ASSEMBLY. L.H.SN: A93001--UP | 1 | Request quote | |||
| 9 | JOINTSN: A93001--UP | 1 | Request quote | |||
| 10 | GROMMETSN: A93001--UP | 1 | Request quote | |||
| 11 | PACKINGSN: A93001--UP | 1 | Request quote | |||
| 12 | PACKINGSN: A93001--UP | 1 | Request quote | |||
| 13 | PACKINGSN: A93001--UP | 2 | Request quote | |||
| 14 | PACKINGSN: A93001--UP | 1 | Request quote | |||
| 15 | PACKINGSN: A93001--UP | 1 | Request quote | |||
| 16 | PACKINGSN: A93001--UP | 1 | Request quote | |||
| 17 | PACKINGSN: A93001--UP | 2 | Request quote | |||
| 18 | PACKINGSN: A93001--UP | 2 | Request quote | |||
| 19 | PIPESN: A93001--UP | 1 | Request quote | |||
| 20 | BRACKETSN: A93001--UP | 2 | Request quote | |||
| 21 | BRACKETSN: A93001--UP | 1 | Request quote | |||
| 22 | VALVE, EXPANSIONSN: A93001--UP | 1 | Request quote | |||
| 23 | CAP, COOLER BOXSN: A93001--UP | 1 | Request quote | |||
| 24 | MOTOR, ACTUATORSN: A93001--UP | 2 | Request quote | |||
| 25 | VALVE, EXPANSIONSN: A93001--UP | 1 | Request quote | |||
| 26 | THERMISTORSN: A93001--UP | 1 | Request quote | |||
| 27 | WIRING HARNESSSN: A93001--UP | 1 | Request quote | |||
| 28 | LEVER, UPPERSN: A93001--UP | 1 | Request quote | |||
| 29 | LEVER, LOWERSN: A93001--UP | 1 | Request quote | |||
| 30 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 31 | LINKSN: A93001--UP | 1 | Request quote | |||
| 32 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 33 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 34 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 35 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 36 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 37 | RODSN: A93001--UP | 1 | Request quote | |||
| 38 | LEVERSN: A93001--UP | 1 | Request quote | |||
| 39 | RODSN: A93001--UP | 1 | Request quote | |||
| 40 | RODSN: A93001--UP | 1 | Request quote | |||
| 41 | RODSN: A93001--UP | 1 | Request quote | |||
| 42 | DAMPER, UPPERSN: A93001--UP | 1 | Request quote | |||
| 43 | DAMPER, LOWERSN: A93001--UP | 1 | Request quote | |||
| 44 | DAMPERSN: A93001--UP | 1 | Request quote | |||
| 45 | DAMPERSN: A93001--UP | 2 | Request quote | |||
| 46 | RELAYSN: A93001--UP | 2 | Request quote | |||
| 47 | EVAPORATOR ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 48 | O-RINGSN: A93001--UP | 1 | Request quote | |||
| 49 | O-RINGSN: A93001--UP | 1 | Request quote | |||
| 50 | CAPSN: A93001--UP | 2 | Request quote | |||
| 51 | BOLTSN: A93001--UP | 2 | Request quote | |||
| 52 | SCREWSN: A93001--UP | 2 | Request quote | |||
| 53 | CAPSN: A93001--UP | 3 | Request quote | |||
| 54 | NUTSN: A93001--UP | 4 | Request quote | |||
| 55 | CLAMPSN: A93001--UP | 6 | Request quote | |||
| 56 | CLAMPSN: A93001--UP | 2 | Request quote | |||
| 57 | BANDSN: A93001--UP | 2 | Request quote | |||
| 58 | HOLDERSN: A93001--UP | 4 | Request quote | |||
| 59 | HOLDERSN: A93001--UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-6 Wheel Loader Air Conditioner Complete Assembly Parts
Use the Komatsu WA500-6 Wheel Loader Air Conditioner Complete Assembly Parts listing to identify aftermarket replacement parts within the cab / controls section. This wheel loader application is listed for machine serial A93001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 60 listed part occurrences, including auto air conditioner assembly (reference 423-07-31811), controller (reference ANTKS-B210A0) and heater core assembly (reference AN51141-10430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
