Komatsu WA500-6 Wheel Loader Operator Seat Air Suspension Parts
Komatsu WA500-6 operator seat air suspension parts for machine serial A93001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cab / Controls / Operator Seat Air Suspension.
Checking current purchase options...

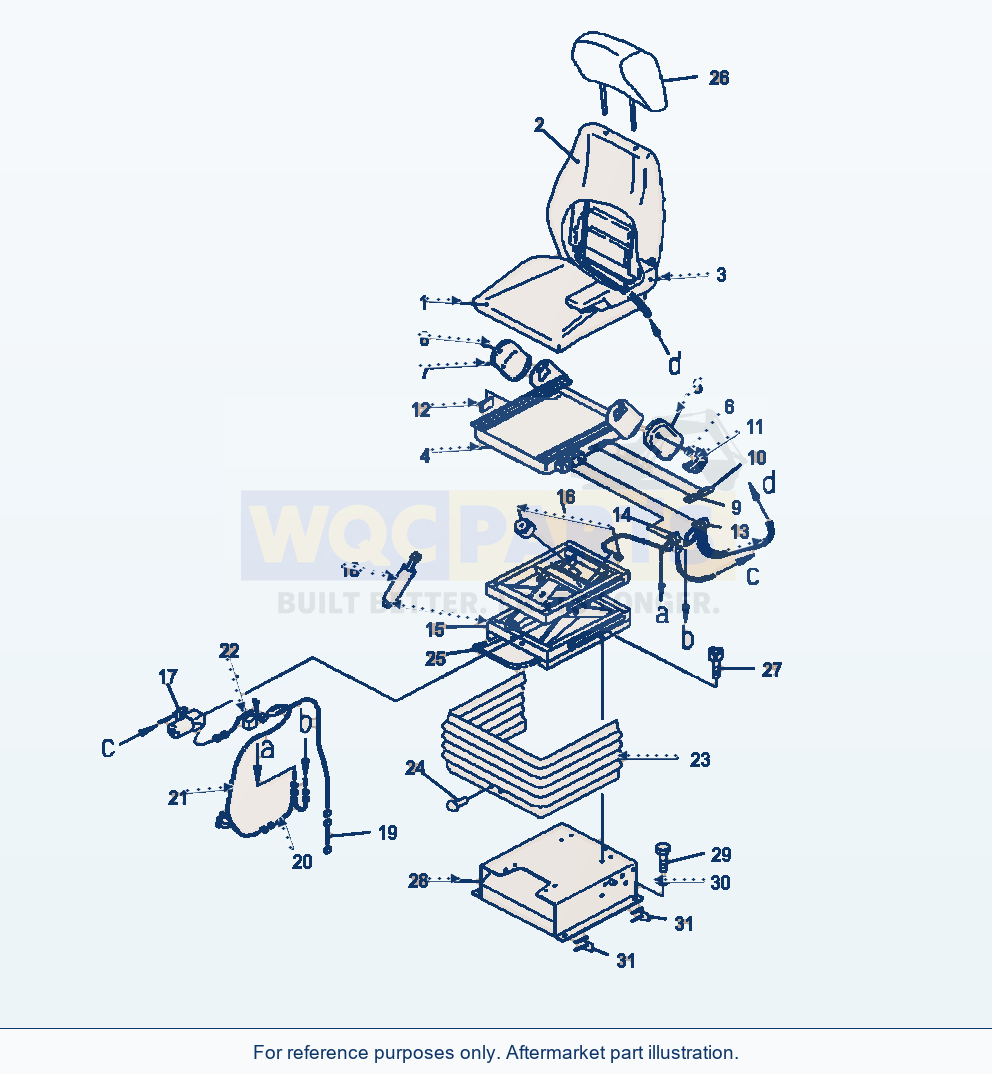

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 35 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | SEAT ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 1 | CUSHION, SEATSN: A93001--UP | 1 | Request quote | |||
| 2 | CUSHION, BACKSN: A93001--UP | 1 | Request quote | |||
| 3 | ARMRESTSN: A93001--UP | 1 | Request quote | |||
| 4 | LIFTER ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 5 | COVER ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 5 | COVER, L.H.SN: A93001--UP | 1 | Request quote | |||
| 6 | CAPSN: A93001--UP | 1 | Request quote | |||
| 7 | COVER, R.H.SN: A93001--UP | 1 | Request quote | |||
| 8 | CAPSN: A93001--UP | 1 | Request quote | |||
| 10 | KNOB ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 9 | KNOB, TILT - FRONTSN: A93001--UP | 1 | Request quote | |||
| 10 | KNOB, TILT - REARSN: A93001--UP | 1 | Request quote | |||
| 11 | KNOB, RECLININGSN: A93001--UP | 1 | Request quote | |||
| 12 | KNOB, SLIDESN: A93001--UP | 1 | Request quote | |||
| 13 | SUSPENSION ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 14 | SPRING ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 15 | COMPRESSOR ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 16 | SWITCH, AIR SUSPENSIONSN: A93001--UP | 1 | Request quote | |||
| 17 | SWITCH ASSEMBLY, LUMBERSN: A93001--UP | 1 | Request quote | |||
| 18 | DAMPERSN: A93001--UP | 1 | Request quote | |||
| 21 | HARNESS ASSEMBLYSN: A93001--UP | 1 | Request quote | |||
| 19 | HARNESSSN: A93001--UP | 1 | Request quote | |||
| 20 | HARNESSSN: A93001--UP | 1 | Request quote | |||
| 21 | HARNESSSN: A93001--UP | 1 | Request quote | |||
| 22 | RELAYSN: A93001--UP | 1 | Request quote | |||
| 23 | SUSPENSION COVERSN: A93001--UP | 1 | Request quote | |||
| 24 | CLIPSN: A93001--UP | 8 | Request quote | |||
| 25 | ADJUSTER, SEATSN: A93001--UP | 1 | Request quote | |||
| 26 | HEAD RESTSN: A93001--UP | 1 | Request quote | |||
| 27 | BOLTSN: A93001--UP | 4 | Request quote | |||
| 28 | BRACKETSN: A93001--UP | 1 | Request quote | |||
| 29 | BOLTSN: A93001--UP | 4 | Request quote | |||
| 30 | WASHERSN: A93001--UP | 4 | View product ↗ | |||
| 31 | SHIM, 0.50 MMSN: A93001--UP | 8 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-6 Wheel Loader Operator Seat Air Suspension Parts
Use the Komatsu WA500-6 Wheel Loader Operator Seat Air Suspension Parts listing to identify aftermarket replacement parts within the cab / controls section. This wheel loader application is listed for machine serial A93001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 35 listed part occurrences, including seat assembly (reference 421-57-41110), cushion, seat (reference 421-57-31510) and cushion, back (reference 421-57-31520). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
