Komatsu WA500-6 Rear Brake Piping Slack Adjuster Lines Parts

Komatsu WA500-6 rear brake piping slack adjuster lines parts for machine serial A93001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Cab / Controls / Rear Brake Piping Slack Adjuster Lines.

WA500-6Machine serial A93001-UP42 part occurrences

Checking current purchase options...

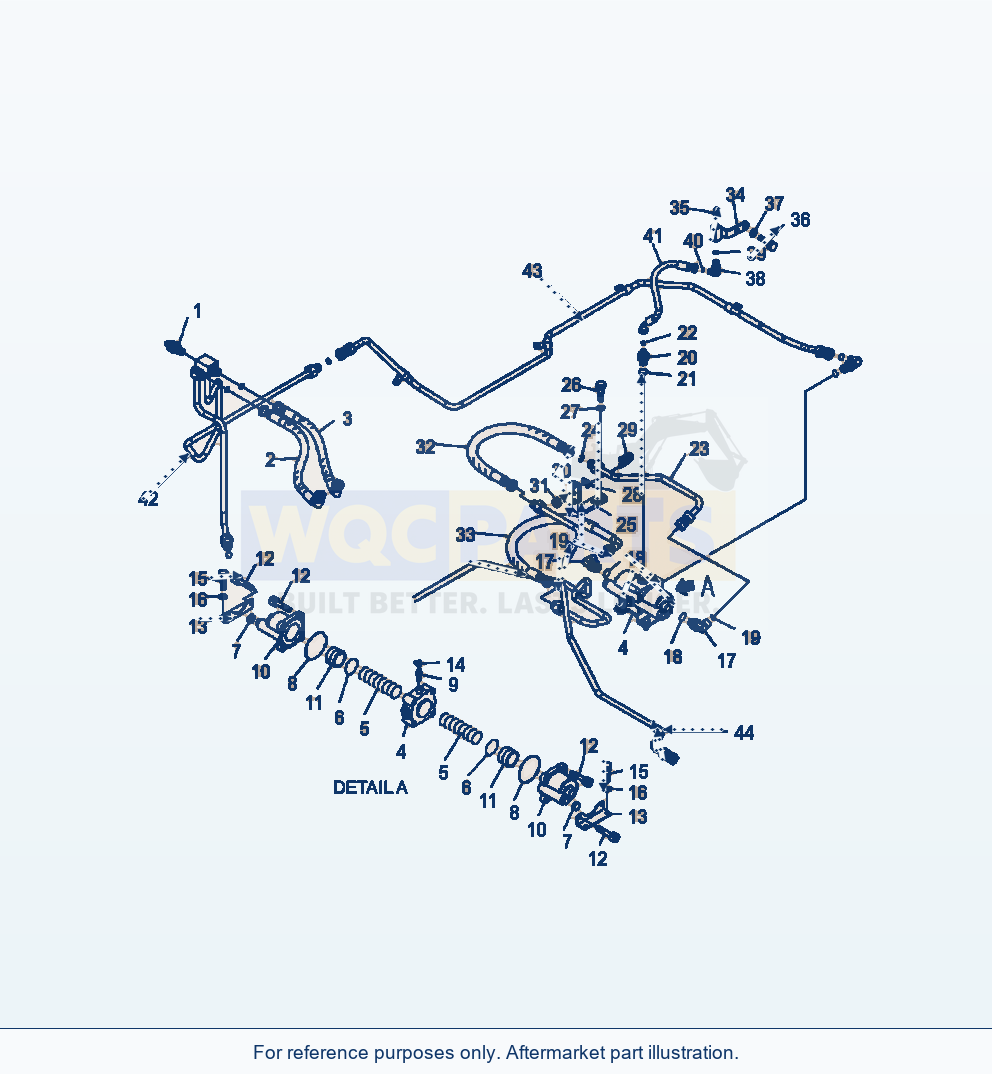

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 42 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	SENSOR, PRESSURESN: A93001--UP	1	Request quote
2	HOSESN: A93001--UP	1	Request quote
3	HOSESN: A93001--UP	1	Request quote
4	ADJUSTER, SLACKSN: A93001--UP	1	Request quote
5	SPRINGSN: A93001--UP	2	Request quote
6	O-RINGSN: A93001--UP	2	Request quote
7	COVERSN: A93001--UP	2	Request quote
8	O-RINGSN: A93001--UP	2	Request quote
9	VALVESN: A93001--UP	1	Request quote
10	CYLINDER ASSEMBLYSN: A93001--UP	2	Request quote
N/I	O-RINGSN: A93001--UP	1	Request quote
11	PISTONSN: A93001--UP	2	Request quote
12	BOLTSN: A93001--UP	8	Request quote
13	BRACKETSN: A93001--UP	2	Request quote
14	CAPSN: A93001--UP	1	Request quote
15	BOLTSN: A93001--UP	4	Request quote
16	WASHERSN: A93001--UP	4	View product ↗
17	ELBOWSN: A93001--UP	2	Request quote
18	O-RINGSN: A93001--UP	2	View product ↗
19	O-RINGSN: A93001--UP	2	View product ↗
20	NIPPLESN: A93001--UP	1	Request quote
21	O-RINGSN: A93001--UP	1	View product ↗
22	O-RINGSN: A93001--UP	1	Request quote
23	TUBESN: A93001--UP	1	Request quote
24	O-RINGSN: A93001--UP	1	View product ↗
25	BRACKETSN: A93001--UP	1	Request quote
26	BOLTSN: A93001--UP	2	Request quote
27	WASHERSN: A93001--UP	2	View product ↗
28	SEATSN: A93001--UP	1	Request quote
29	U-BOLTSN: A93001--UP	1	Request quote
30	WASHERSN: A93001--UP	2	View product ↗
31	NUTSN: A93001--UP	2	Request quote
32	HOSESN: A93001--UP	1	Request quote
33	HOSESN: A93001--UP	1	Request quote
34	BLOCKSN: A93001--UP	1	Request quote
35	VALVESN: A93001--UP	1	Request quote
36	BOLTSN: A93001--UP	2	Request quote
37	WASHERSN: A93001--UP	2	View product ↗
38	ELBOWSN: A93001--UP	1	Request quote
39	O-RINGSN: A93001--UP	1	Request quote
40	O-RINGSN: A93001--UP	1	Request quote
41	HOSESN: A93001--UP	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.

Assembly notes

TUBE (SEE FIG. K4460-03A0)

TUBE (SEE FIG. K4460-05A0 )

TUBE (SEE FIG. K4460-05A1 )

F2 - USED ON MACHINES WITH BRAKE COOLING SYSTEM.
