Komatsu WA500-6 Alternator - 75 A Hardened Hardened Pulley Parts
Komatsu WA500-6 alternator - 75 a hardened hardened pulley parts for machine serial A92001-A93000. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Alternator - 75 A Hardened Hardened Pulley.
Checking current purchase options...

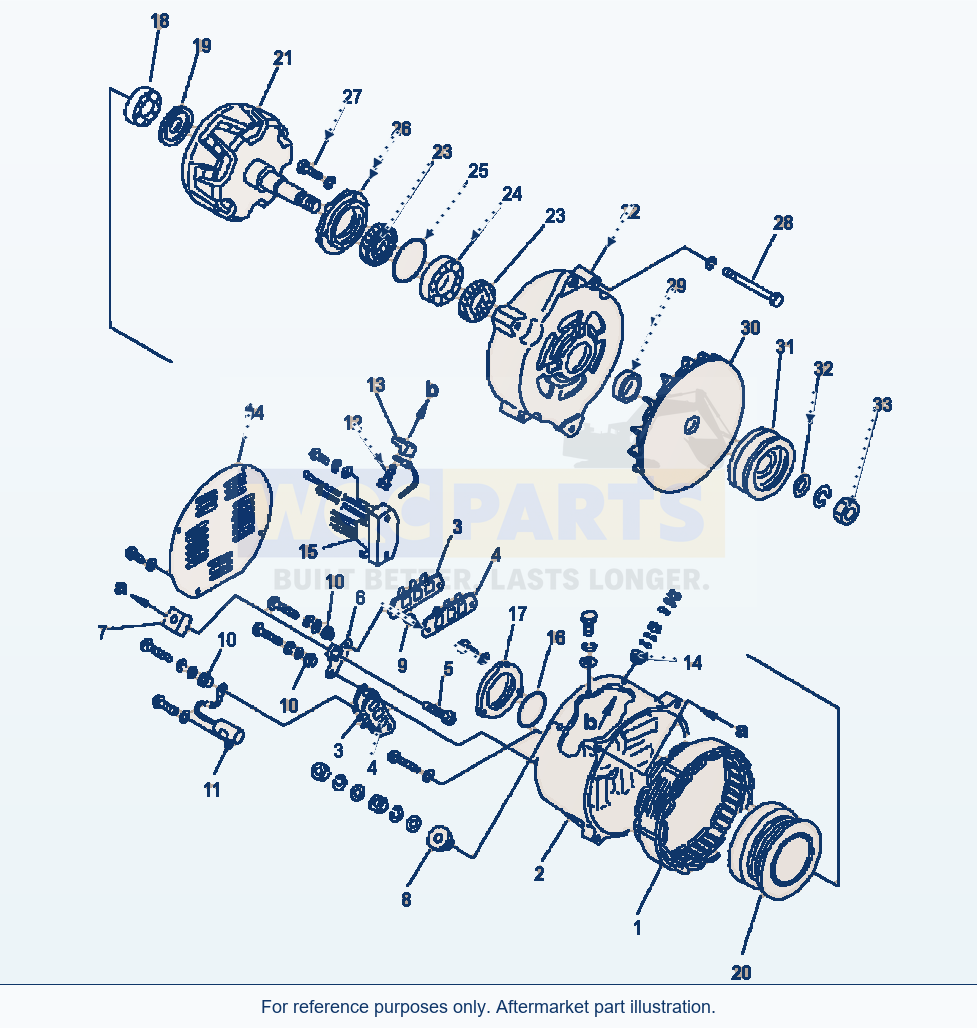

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 37 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | ALTERNATOR ASSEMBLY - 75 A | 1 | Request quote | |||
| 1 | STATOR ASSEMBLY | 1 | Request quote | |||
| 2 | REAR BRACKET ASSEMBLY | 1 | Request quote | |||
| 2 | BRACKET, REAR | 1 | Request quote | |||
| 3 | HEAT SINK ASSEMBLY (+) | 2 | Request quote | |||
| 4 | HEAT SINK ASSEMBLY (-) | 2 | Request quote | |||
| 5 | BOLT | 1 | Request quote | |||
| 6 | SUPPORT | 1 | Request quote | |||
| 7 | INSULATOR | 1 | Request quote | |||
| 8 | BUSHING | 1 | Request quote | |||
| 9 | INSULATOR | 4 | Request quote | |||
| 10 | BUSHING | 4 | Request quote | |||
| 11 | CONDENSER | 1 | Request quote | |||
| 12 | BOLT | 1 | Request quote | |||
| 13 | INSULATOR | 1 | Request quote | |||
| 14 | BUSHING | 1 | Request quote | |||
| 15 | REGULATOR ASSEMBLY | 1 | Request quote | |||
| 16 | O-RING | 1 | Request quote | |||
| 17 | COVER | 1 | Request quote | |||
| 18 | BEARING, BALL | 1 | Request quote | |||
| 19 | COVER | 1 | Request quote | |||
| 20 | COIL ASSEMBLY | 1 | Request quote | |||
| 21 | ROTOR ASSEMBLY | 1 | Request quote | |||
| 23 | FRONT BRACKET ASSEMBLY | 1 | Request quote | |||
| 22 | BRACKET, FRONT | 1 | Request quote | |||
| 23 | SEAL, OIL | 2 | Request quote | |||
| 24 | BEARING, BALL | 1 | Request quote | |||
| 25 | O-RING | 1 | Request quote | |||
| 26 | COVER | 1 | Request quote | |||
| 27 | BOLT | 3 | Request quote | |||
| 28 | BOLT | 4 | Request quote | |||
| 29 | COLLAR | 1 | Request quote | |||
| 30 | FAN ASSEMBLY | 1 | Request quote | |||
| 31 | PULLEY, HARDENED | 1 | Request quote | |||
| 32 | WASHER | 1 | Request quote | |||
| 33 | NUT | 1 | Request quote | |||
| 34 | COVER | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-6 Alternator - 75 A Hardened Hardened Pulley Parts
Use the Komatsu WA500-6 Alternator - 75 A Hardened Hardened Pulley Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A92001-A93000; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 37 listed part occurrences, including alternator assembly - 75 a (reference 600-825-7212), stator assembly (reference SD1211-40300X0) and rear bracket assembly (reference SD1230-18812X0). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
