Komatsu WA500-6 Exhaust Gas Recirculation Valve (Egr) Egr Valve Parts
Komatsu WA500-6 exhaust gas recirculation valve (egr) egr valve parts for machine serial A93001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Exhaust Gas Recirculation Valve (Egr) Egr Valve.
Checking current purchase options...

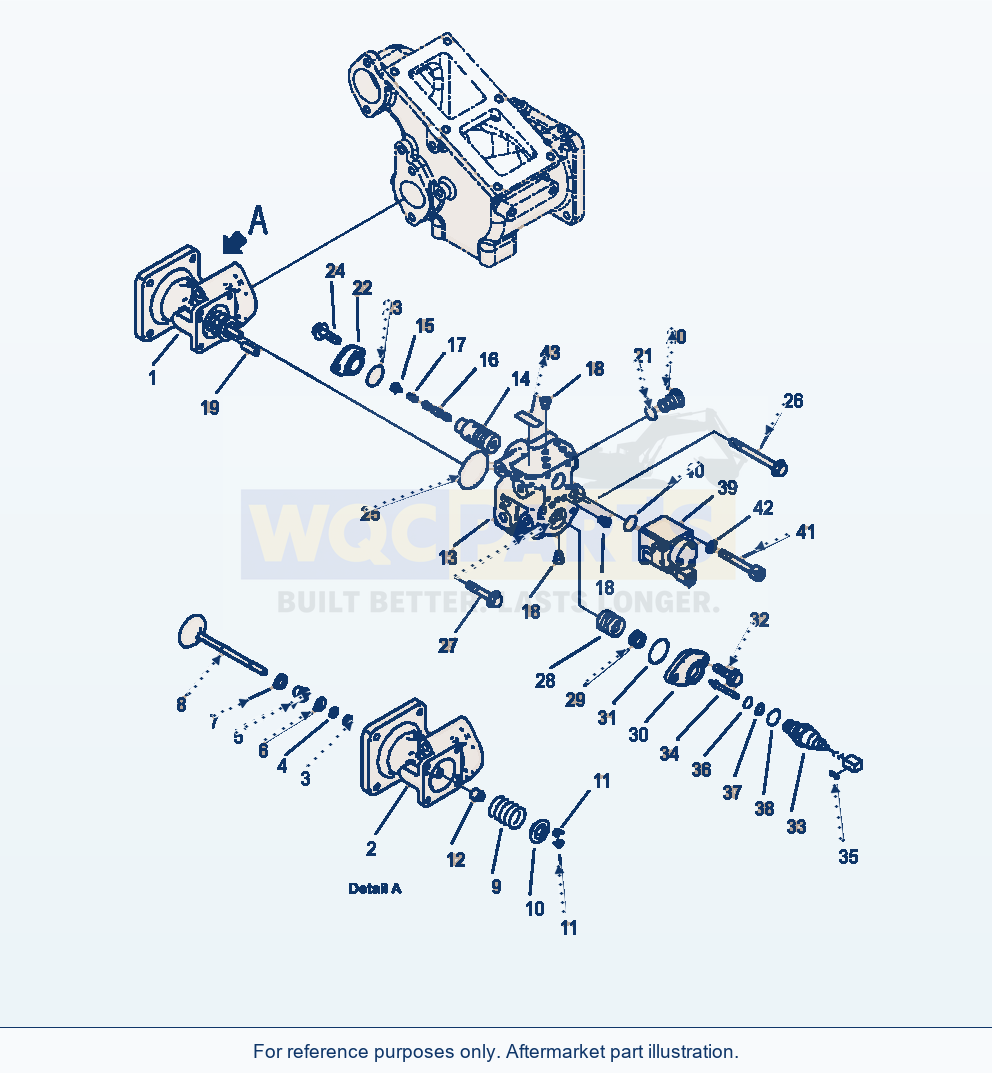

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 46 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | VALVE ASSEMBLY | 1 | Request quote | |||
| 1 | VALVE ASSEMBLY | 1 | Request quote | |||
| 2 | CASE | 1 | Request quote | |||
| 3 | SEAL | 1 | Request quote | |||
| 4 | INSULATOR | 1 | Request quote | |||
| 5 | COVER | 1 | Request quote | |||
| 6 | PLATE | 1 | Request quote | |||
| 7 | RING | 1 | Request quote | |||
| 8 | VALVE | 1 | Request quote | |||
| 9 | SPRING | 1 | Request quote | |||
| 10 | SEAT | 1 | View product ↗ | |||
| 11 | COTTER | 2 | View product ↗ | |||
| 12 | SEAL | 1 | View product ↗ | |||
| 13 | CASE ASSEMBLY | 1 | Request quote | |||
| 13 | CASE | 1 | Request quote | |||
| 14 | BUSHING | 1 | Request quote | |||
| 15 | SEAT, T= 50 MM | 1 | Request quote | |||
| 16 | SPOOL | 1 | Request quote | |||
| 17 | SPRING | 1 | Request quote | |||
| 18 | PLUG | 7 | Request quote | |||
| 19 | PLUG, DOWEL | 2 | View product ↗ | |||
| 20 | FILTER | 1 | Request quote | |||
| 21 | O-RING | 1 | View product ↗ | |||
| 22 | COVER | 1 | Request quote | |||
| 23 | O-RING | 1 | Request quote | |||
| 24 | BOLT | 2 | Request quote | |||
| 25 | O-RING | 1 | Request quote | |||
| 26 | BOLT | 2 | Request quote | |||
| 27 | BOLT | 2 | Request quote | |||
| 28 | PISTON | 1 | Request quote | |||
| 29 | SPRING | 1 | Request quote | |||
| 30 | COVER | 1 | Request quote | |||
| 31 | O-RING | 1 | Request quote | |||
| 32 | BOLT | 2 | View product ↗ | |||
| 34 | SENSOR ASSEMBLY | 1 | Request quote | |||
| 33 | SENSOR ASSEMBLY | 1 | Request quote | |||
| 34 | CORE ASSEMBLY | 1 | Request quote | |||
| 35 | PLATE | 1 | Request quote | |||
| 36 | O-RING | 1 | Request quote | |||
| 37 | RING, BACK-UP | 1 | View product ↗ | |||
| 38 | O-RING | 1 | View product ↗ | |||
| 39 | SOLENOID ASSEMBLY | 1 | Request quote | |||
| 40 | O-RING | 1 | View product ↗ | |||
| 41 | BOLT | 4 | Request quote | |||
| 42 | WASHER | 4 | View product ↗ | |||
| 43 | PLATE | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
