Komatsu WA500-6 Wheel Loader Fuel Tank Mounting Parts
Komatsu WA500-6 fuel tank mounting parts for machine serial A92001-A93000. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Fuel System / Fuel Tank Mounting.
Checking current purchase options...

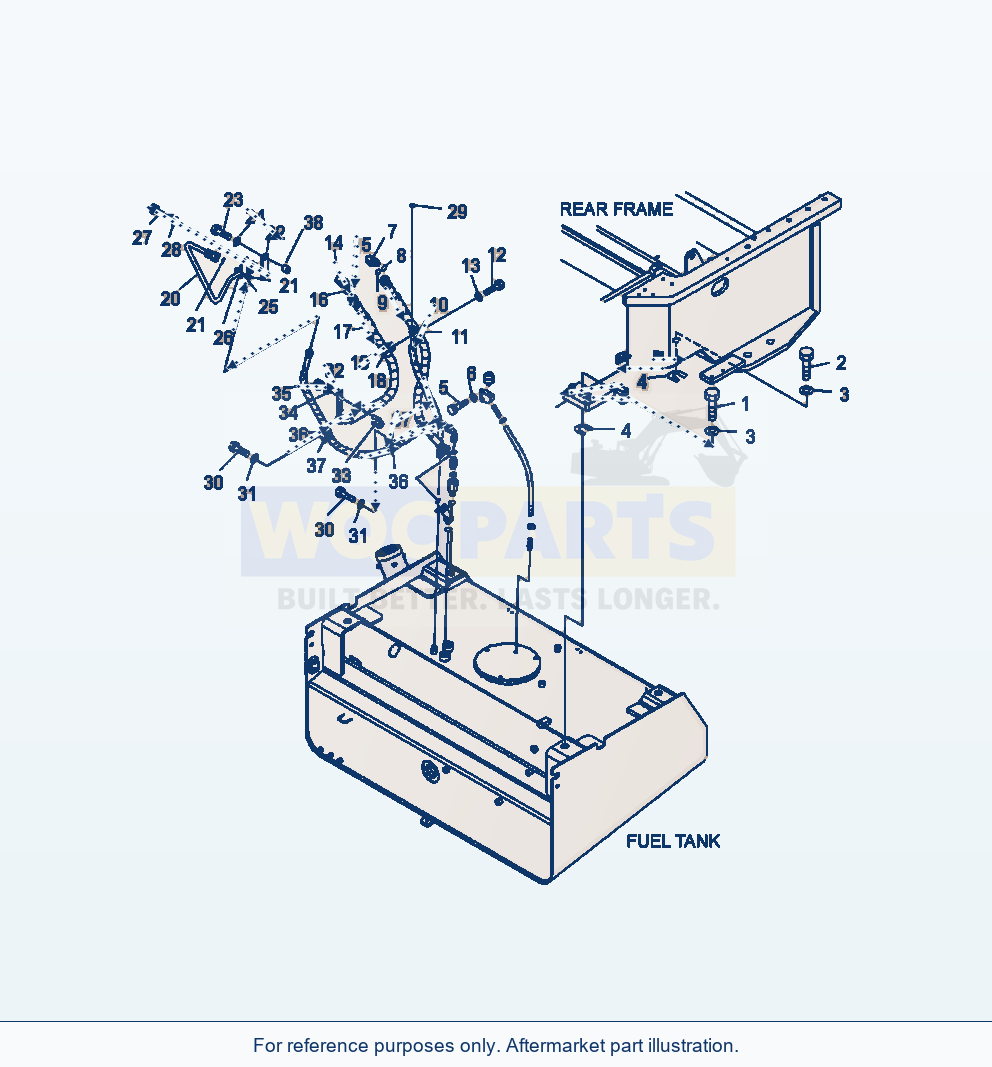

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOLTSN: A92001--UP | 2 | View product ↗ | |||
| 2 | BOLTSN: A92001--UP | 2 | Request quote | |||
| 3 | WASHERSN: A92001--UP | 4 | Request quote | |||
| 4 | SHIM, 0.5 MMSN: A92001--UP | 8 | Request quote | |||
| 5 | BOLTSN: A92001--UP | 2 | Request quote | |||
| 6 | WASHERSN: A92001--UP | 2 | View product ↗ | |||
| 7 | ELBOWSN: A92001--UP | 1 | Request quote | |||
| 8 | O-RINGSN: A92001--UP | 1 | View product ↗ | |||
| 9 | O-RINGSN: A92001--UP | 1 | View product ↗ | |||
| 10 | CUSHIONSN: A92001--UP | 1 | View product ↗ | |||
| 11 | CLIPSN: A92001--UP | 1 | Request quote | |||
| 12 | BOLTSN: A92001--UP | 1 | Request quote | |||
| 13 | WASHERSN: A92001--UP | 1 | View product ↗ | |||
| 14 | ELBOWSN: A92001--UP | 1 | Request quote | |||
| 15 | O-RINGSN: A92001--UP | 1 | View product ↗ | |||
| 16 | O-RINGSN: A92001--UP | 2 | View product ↗ | |||
| 17 | HOSESN: A92001--UP | 1 | Request quote | |||
| 18 | CUSHIONSN: A92001--UP | 1 | View product ↗ | |||
| 19 | CLIPSN: A92001--UP | 1 | Request quote | |||
| 20 | TUBESN: A92001--UP | 1 | Request quote | |||
| 21 | O-RINGSN: A92001--UP | 2 | View product ↗ | |||
| 22 | PLATESN: A92001--UP | 1 | Request quote | |||
| 23 | BOLTSN: A92270--UP | 1 | Request quote | |||
| 24 | BOLTSN: A92001-A92269-UP | 1 | Request quote | |||
| 24 | WASHERSN: A92001--UP | 1 | View product ↗ | |||
| 25 | CLAMPSN: A92001--UP | 2 | Request quote | |||
| 26 | CUSHIONSN: A92001--UP | 1 | Request quote | |||
| 27 | BOLTSN: A92001--UP | 1 | Request quote | |||
| 28 | WASHERSN: A92001--UP | 1 | View product ↗ | |||
| 29 | O-RINGSN: A92001--UP | 1 | View product ↗ | |||
| 30 | BOLTSN: A92001--UP | 1 | Request quote | |||
| 31 | WASHERSN: A92001--UP | 1 | View product ↗ | |||
| 32 | BRACKETSN: A92001--UP | 1 | Request quote | |||
| 33 | CLIPSN: A92001--UP | 1 | Request quote | |||
| 34 | WASHERSN: A92001--UP | 2 | View product ↗ | |||
| 35 | NUTSN: A92001--UP | 2 | View product ↗ | |||
| 36 | CUSHIONSN: A92001--UP | 2 | Request quote | |||
| 37 | CLIPSN: A92001--UP | 2 | Request quote | |||
| 38 | SPACERSN: A92270--UP | 1 | Request quote | |||
| N/I | JOINTSN: A92001-A92199-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
