Komatsu WA500-6 Wheel Loader Decal (Common Parts) Parts
Komatsu WA500-6 decal (common parts) parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks / Plates / Decal (Common Parts).
Checking current purchase options...

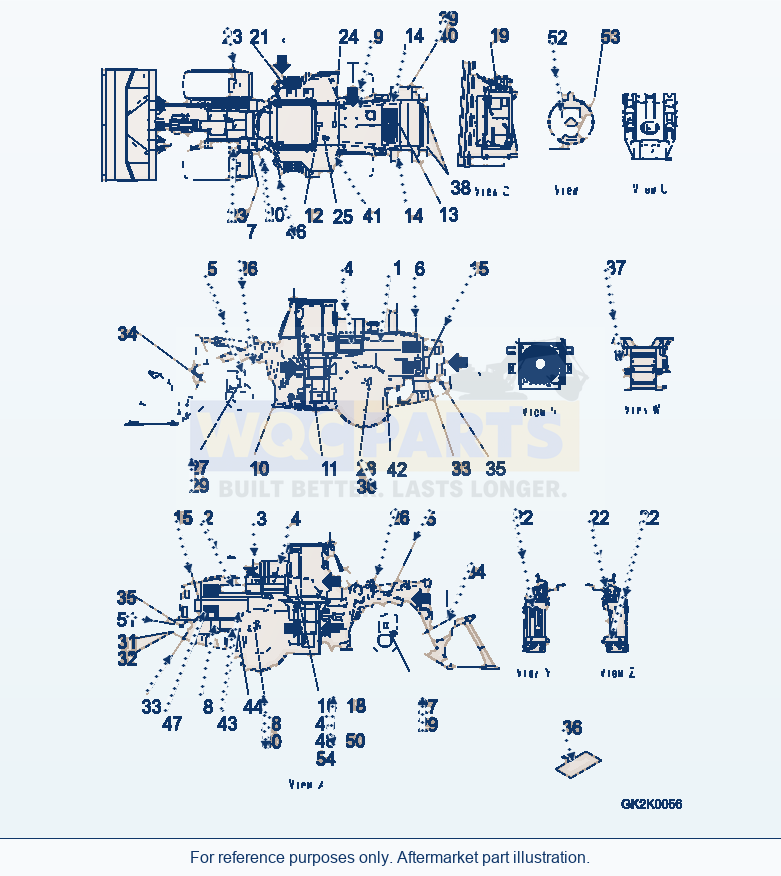

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 54 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | DECAL, LHSSN: H60051-UP | 1 | Request quote | |||
| 2 | DECAL, RHSSN: H60051-UP | 1 | Request quote | |||
| 3 | DECAL, RHSSN: H60051-UP | 1 | Request quote | |||
| 4 | DECALSN: H60051-UP | 2 | Request quote | |||
| 5 | PLATE, MARK, KOMATSUSN: H60051-UP | 2 | Request quote | |||
| 6 | PLATE, ECOT3SN: H60051-UP | 1 | Request quote | |||
| 7 | DECAL, LIFT / SECURESN: H60051-UP | 1 | Request quote | |||
| 8 | PLATE, DIESELSN: H60051-UP | 1 | Request quote | |||
| 9 | PLATE, CAUTION, WATER FILLERSN: H60051-UP | 1 | Request quote | |||
| 10 | PLATE, SAFETY, KEEP OFFSN: H60051-UP | 2 | Request quote | |||
| 11 | PLATE, SAFETY, ARTICULATE LOCKSN: H60051-UP | 1 | Request quote | |||
| 12 | PLATE, SAFETY, HOT WATER / OILSN: H60051-UP | 1 | Request quote | |||
| 13 | PLATESN: H60051-UP | 1 | Request quote | |||
| 14 | PLATE SAFETY, BATTERY CABLESN: H60051-UP | 2 | Request quote | |||
| 15 | PLATE, APPROACHSN: H60051-UP | 2 | Request quote | |||
| 16 | DECAL, OPERATION MANUALSN: H60051-UP | 1 | Request quote | |||
| 17 | PLATE, SAFETYSN: H60051-UP | 1 | Request quote | |||
| 18 | PLATE, DANGER, HIGH VOLTAGE HAZARDSN: H60051-UP | 1 | Request quote | |||
| 19 | DECAL, LOCK LEVERSN: H60051-UP | 1 | Request quote | |||
| 20 | PLATE, SAFETYSN: H60051-UP | 1 | Request quote | |||
| 21 | PLATE, SAFETYSN: H60051-UP | 1 | Request quote | |||
| 22 | PLATE, EXPLOSION HAZARDSN: H60051-UP | 3 | Request quote | |||
| 23 | PLATE, CAUTION, DO NOT GET ONSN: H60051-UP | 2 | Request quote | |||
| 24 | PLATE, CAUTION, DO NOT GET ONSN: H60051-UP | 1 | Request quote | |||
| 25 | DECAL, KOMATSU - OILSN: H60051-UP | 1 | Request quote | |||
| 26 | PLATE, FALL OF LIFT ARMSN: H60051-UP | 2 | Request quote | |||
| 27 | SYMBOL, HOOKSN: H60051-UP | 2 | Request quote | |||
| 28 | SYMBOL, HOOKSN: H60051-UP | 2 | Request quote | |||
| 29 | DECAL, TIE DOWN POINTSN: H60051-UP | 2 | Request quote | |||
| 30 | DECAL, TIE DOWN POINTSN: H60051-UP | 2 | Request quote | |||
| 31 | PLATESN: H60051-UP | 1 | Request quote | |||
| 32 | RIVETSN: H60051-UP | 2 | Request quote | |||
| 33 | DECAL, ROTATING OBJECTSN: H60051-UP | 2 | Request quote | |||
| 34 | REFLECTOR YELLOWSN: H60051-UP | 4 | Request quote | |||
| 35 | REFLECTOR YELLOWSN: H60051-UP | 2 | Request quote | |||
| 36 | TAG, CHECKING MAINTENANCESN: H60051-UP | 1 | Request quote | |||
| 37 | OIL CHARTSN: H60051-UP | 1 | Request quote | |||
| 38 | PLATE, REFLECTOR REDSN: H60051-UP | 2 | Request quote | |||
| 39 | DECAL, BATTERY MAIN SWITCHSN: H60051-UP | 1 | Request quote | |||
| 40 | DECAL, BATTERY MAIN SWITCHSN: H60051-UP | 1 | Request quote | |||
| 41 | PLATESN: H60051-UP | 1 | Request quote | |||
| 42 | DECAL, WATER DRAINSN: H60051-UP | 2 | Request quote | |||
| 43 | DECAL, OIL DRAINSN: H60051-UP | 1 | Request quote | |||
| 44 | DECAL, FUEL DRAINSN: H60051-UP | 1 | Request quote | |||
| 45 | DECALSN: H60051-UP | 1 | Request quote | |||
| 46 | DECAL, A/C FILTERSN: H60051-UP | 1 | Request quote | |||
| 47 | PLATESN: H60051-UP | 1 | Request quote | |||
| 48 | PLATESN: H60051-UP | 1 | Request quote | |||
| 49 | PLATE, WARNINGSN: H60051-UP | 1 | Request quote | |||
| 50 | PLATE, 12VSN: H60051-UP | 1 | Request quote | |||
| 51 | PLATE, SAFETYSN: H60051-UP | 1 | Request quote | |||
| 52 | PLATESN: H60051-UP | 1 | Request quote | |||
| 53 | PLATE, INSTRUCTIONSN: H60051-UP | 1 | Request quote | |||
| 54 | PLATESN: H60051-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-6 Wheel Loader Decal (Common Parts) Parts
Use the Komatsu WA500-6 Wheel Loader Decal (Common Parts) Parts listing to identify aftermarket replacement parts within the marks / plates section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 54 listed part occurrences, including decal, lhs (reference 425-93-41112), decal, rhs (reference 425-93-41120) and decal, rhs (reference 425-93-41130). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
