Komatsu WA500-7 Brake Compo Box, Cover Serial H62051-UP Parts
Komatsu WA500-7 brake compo box, cover serial h62051-up parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cab / Controls / Brake Compo Box / Brake Compo Box, Cover.
Checking current purchase options...

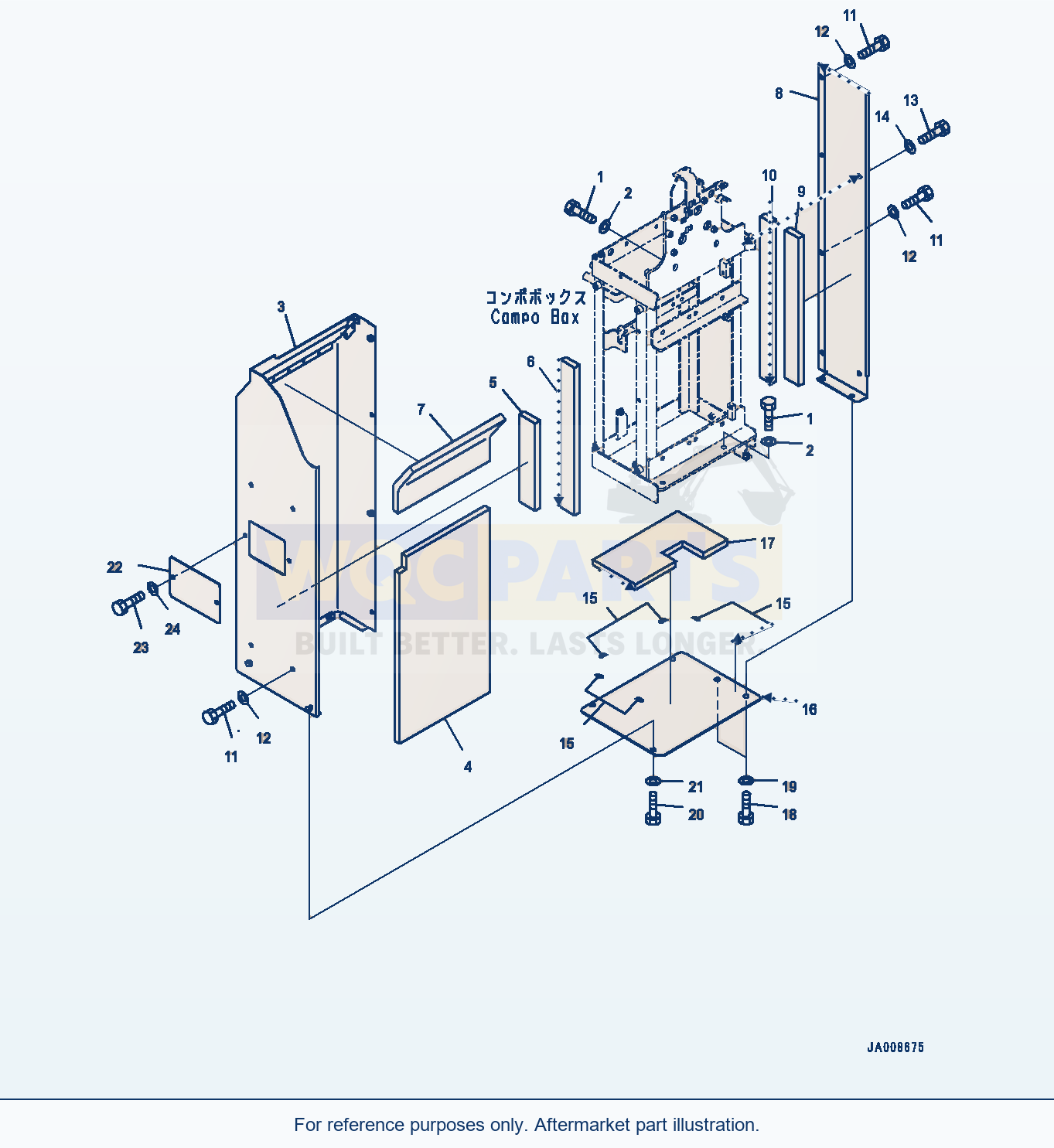

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOLTSN: H62051-UP | 4 | Request quote | |||
| 2 | WASHERSN: H62051-UP | 4 | View product ↗ | |||
| 2 | COVERSN: H62051-UP | 1 | Request quote | |||
| 4 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 5 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 6 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 7 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 7 | COVER ASSEMBLYSN: H62051-UP | 1 | Request quote | |||
| 9 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 10 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 11 | BOLTSN: H62051-UP | 6 | View product ↗ | |||
| 12 | WASHERSN: H62051-UP | 6 | View product ↗ | |||
| 13 | BOLTSN: H62051-UP | 4 | Request quote | |||
| 14 | WASHERSN: H62051-UP | 4 | View product ↗ | |||
| 15 | SHEETSN: H62051-UP | 6 | Request quote | |||
| 15 | COVER ASSEMBLYSN: H62051-UP | 1 | Request quote | |||
| 17 | SHEETSN: H62051-UP | 1 | Request quote | |||
| 18 | BOLTSN: H62051-UP | 2 | Request quote | |||
| 19 | WASHERSN: H62051-UP | 2 | View product ↗ | |||
| 20 | BOLTSN: H62051-UP | 3 | Request quote | |||
| 21 | WASHERSN: H62051-UP | 3 | View product ↗ | |||
| 22 | BRACKETSN: H62051-UP | 1 | Request quote | |||
| 23 | BOLTSN: H62051-UP | 2 | View product ↗ | |||
| 24 | WASHERSN: H62051-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
