Komatsu WA500-7 Loader Control Switches - Standard Controls Parts
Komatsu WA500-7 loader control switches - standard controls parts for machine serial A94001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Cab / Controls / Loader Control Switches - Standard Controls.
Checking current purchase options...

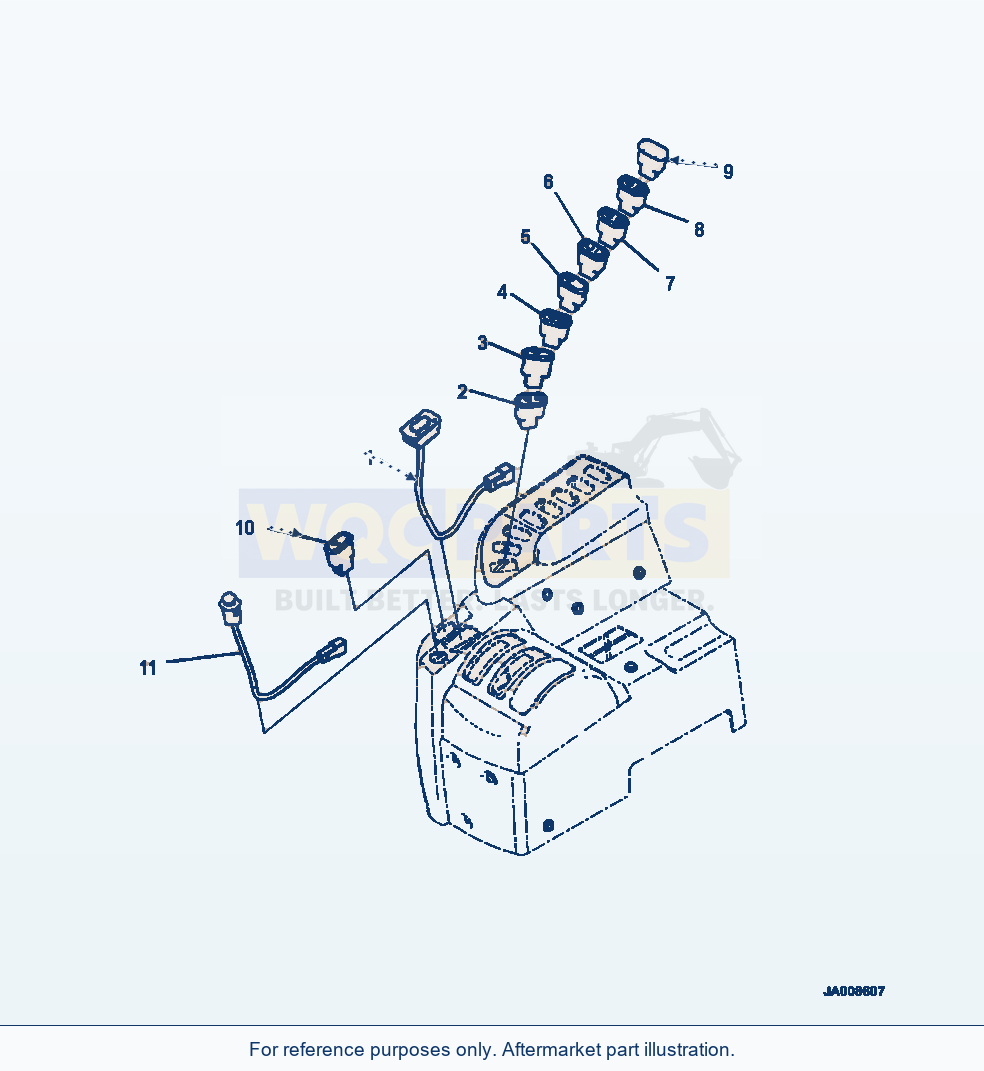

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 11 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SWITCH, FNR | 1 | Request quote | |||
| 2 | SWITCH, TRANSMISSION CUT-OFF, SET | 1 | Request quote | |||
| 3 | SWITCH, POWER MODE | 1 | Request quote | |||
| 4 | SWITCH, TRANSMISSION SHIFT MODE SELECTOR | 1 | Request quote | |||
| 5 | SWITCH, TORQUE CONVERTER LOCK-UP | 1 | Request quote | |||
| 6 | SWITCH, SELECTOR | 1 | Request quote | |||
| 7 | SWITCH, REMOTE BOOM/BUCKET POSITIONER | 1 | Request quote | |||
| 8 | SWITCH, 2-STAGE LO IDLING | 1 | Request quote | |||
| 9 | COVER | 1 | Request quote | |||
| 10 | SWITCH, BOOM LOCK | 1 | Request quote | |||
| 11 | SWITCH, HORN | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-7 Loader Control Switches - Standard Controls Parts
Use the Komatsu WA500-7 Loader Control Switches - Standard Controls Parts listing to identify aftermarket replacement parts within the cab / controls section. This wheel loader application is listed for machine serial A94001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 11 listed part occurrences, including switch, fnr (reference 423-06-51150), switch, transmission cut-off, set (reference 423-06-55760) and switch, power mode (reference 425-06-33660). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
