Komatsu WA500-7 Wheel Loader Battery Disconnect Switch Parts
Komatsu WA500-7 battery disconnect switch parts for serial A94001-UP. View the diagram, part numbers, quantities and configuration notes; shop or request a quote.
Catalog configuration: Battery Box Disconnect Switch.
Checking current purchase options...

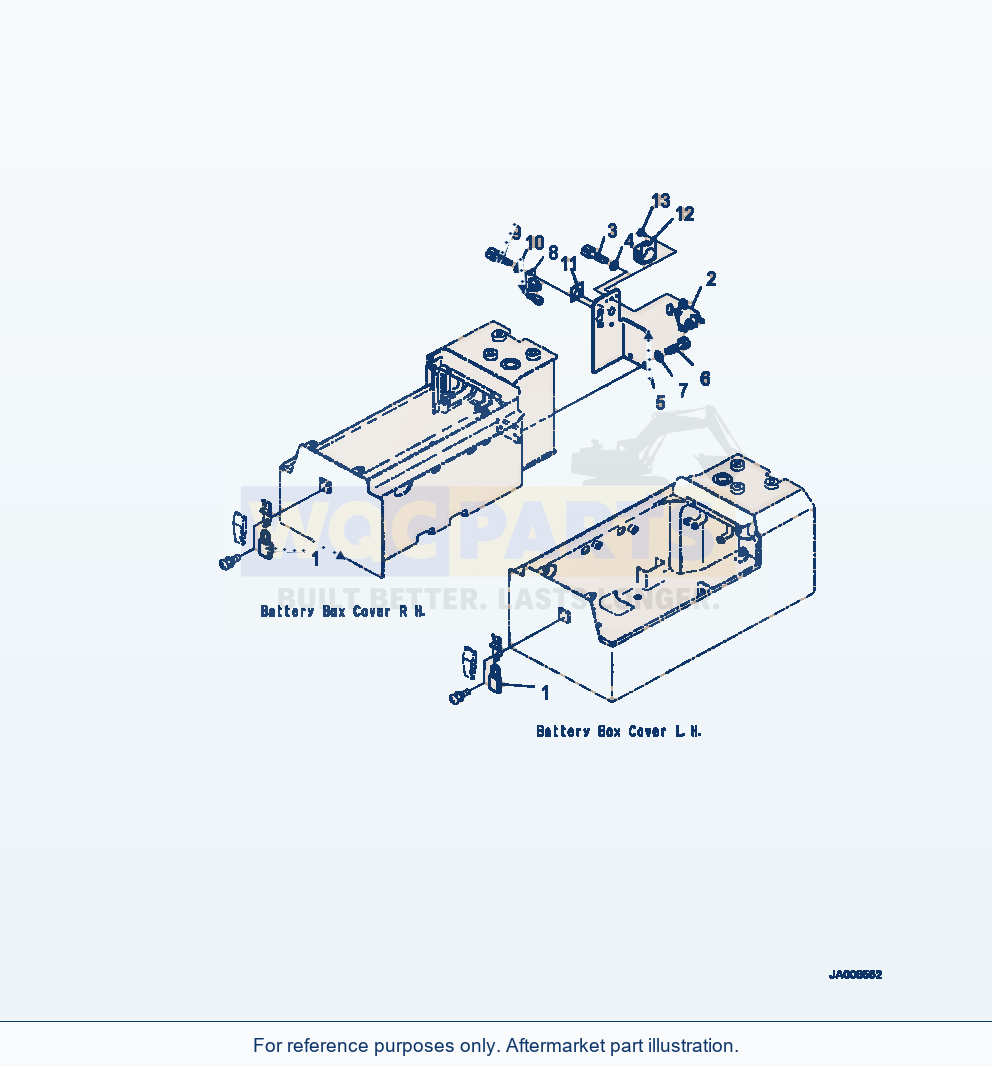

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 13 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LOCK | 2 | Request quote | |||
| 2 | SWITCH, BATTERY | 1 | Request quote | |||
| 3 | BOLT, HEXAGON SOCKET HEAD | 2 | Request quote | |||
| 4 | WASHER | 2 | View product ↗ | |||
| 5 | BRACKET | 1 | Request quote | |||
| 6 | BOLT | 2 | Request quote | |||
| 7 | WASHER | 2 | View product ↗ | |||
| 8 | LAMP | 1 | Request quote | |||
| 9 | BOLT | 2 | Request quote | |||
| 10 | WASHER | 2 | View product ↗ | |||
| 11 | PLATE, BATTERY DISCONNECT SWITCH | 1 | Request quote | |||
| 12 | CAP | 1 | Request quote | |||
| 13 | CAP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-7 Wheel Loader Battery Disconnect Switch Parts
Use the Komatsu WA500-7 Wheel Loader Battery Disconnect Switch Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial A94001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 13 listed part occurrences, including lock (reference 418-979-A110), switch, battery (reference 08068-00001) and bracket (reference 425-06-44311). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
