Komatsu WA500-7 Wheel Loader Crankshaft Serial H62051-UP Parts
Komatsu WA500-7 crankshaft serial h62051-up parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D140E-6C S/N 730016-UP (For WA500-7) / Engine / Crankshaft / Crankshaft.
Checking current purchase options...

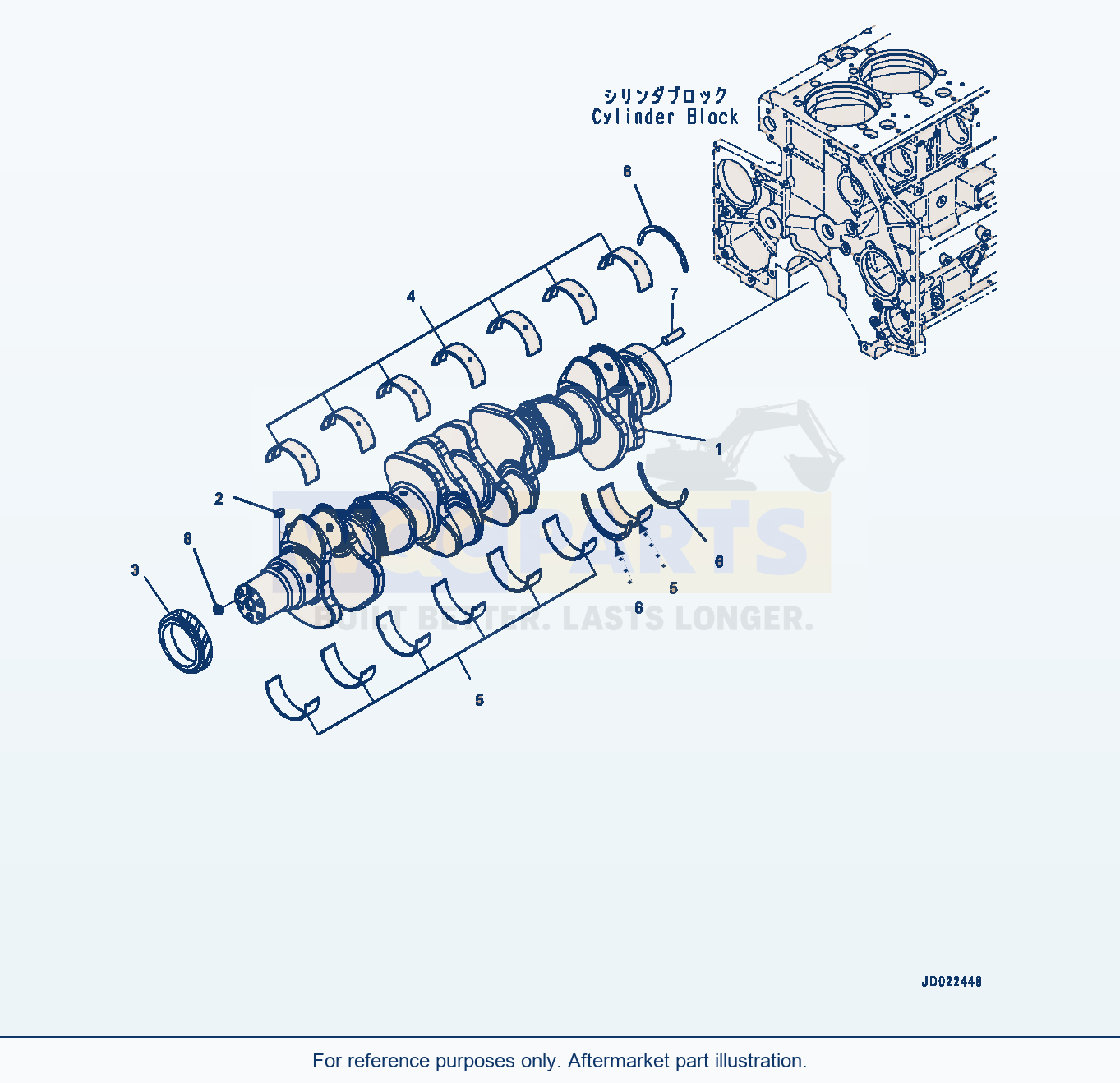

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CRANKSHAFT ASSEMBLYSN: 730016-UP | 1 | View product ↗ | |||
| 2 | KEYSN: 730016-UP | 1 | Request quote | |||
| 3 | GEARSN: 730016-UP | 1 | Request quote | |||
| 3 | METAL ASSEMBLYSN: 730016-UP | 1 | Request quote | |||
| 3 | MAIN METAL ASSEMBLY, STANDARDSN: 730016-UP | 7 | Request quote | |||
| 3 | MAIN METAL ASSEMBLY, UNDERSIZE 0.25MMSN: 730016-UP | 7 | Request quote | |||
| 3 | MAIN METAL ASSEMBLY, UNDERSIZE 0.50MMSN: 730016-UP | 7 | Request quote | |||
| 3 | MAIN METAL ASSEMBLY, UNDERSIZE 0.75MMSN: 730016-UP | 7 | Request quote | |||
| 3 | MAIN METAL ASSEMBLY, UNDERSIZE 1.00MMSN: 730016-UP | 7 | Request quote | |||
| 5 | THRUST METAL ASSEMBLY, STANDARDSN: 730016-UP | 1 | View product ↗ | |||
| 5 | THRUST METAL ASSEMBLY, OVERSIZE 0.25MMSN: 730016-UP | 1 | View product ↗ | |||
| 5 | THRUST METAL ASSEMBLY, OVERSIZE 0.50MMSN: 730016-UP | 1 | View product ↗ | |||
| 5 | THRUST METAL ASSEMBLY, OVERSIZE 0.75MMSN: 730016-UP | 1 | Request quote | |||
| 5 | THRUST METAL ASSEMBLY, OVERSIZE 1.00MMSN: 730016-UP | 1 | Request quote | |||
| 7 | PIN, DOWELSN: 730016-UP | 1 | View product ↗ | |||
| 8 | PINSN: 730016-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CRANKSHAFT
METAL, UPPER, STANDARD
METAL, UPPER, UNDERSIZE 0.25MM
METAL, UPPER, UNDERSIZE 0.50MM
METAL, UPPER, UNDERSIZE 0.75MM
METAL, UPPER, UNDERSIZE 1.00MM
METAL, LOWER, STANDARD
METAL, LOWER, UNDERSIZE 0.25MM
METAL, LOWER, UNDERSIZE 0.50MM
METAL, LOWER, UNDERSIZE 0.75MM
METAL, LOWER, UNDERSIZE 1.00MM
METAL, THRUST, STANDARD
METAL, THRUST, OVERSIZE 0.25MM
METAL, THRUST, OVERSIZE 0.50MM
METAL, THRUST, OVERSIZE 0.75MM
METAL, THRUST, OVERSIZE 1.00MM
Using Komatsu WA500-7 Wheel Loader Crankshaft Serial H62051-UP Parts
Use the Komatsu WA500-7 Wheel Loader Crankshaft Serial H62051-UP Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including crankshaft assembly (reference 6261-31-1200), key (reference 6150-31-1130) and gear (reference 6210-31-1120). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D140E-6C (engine serial 730016-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
