Komatsu WA500-7 Wheel Loader Fuel Controller (#730016-) Parts
Komatsu WA500-7 fuel controller (#730016-) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D140E-6C S/N 730016-UP (For WA500-7) / Fuel System / Fuel Controller / Fuel Controller (#730016-).
Checking current purchase options...

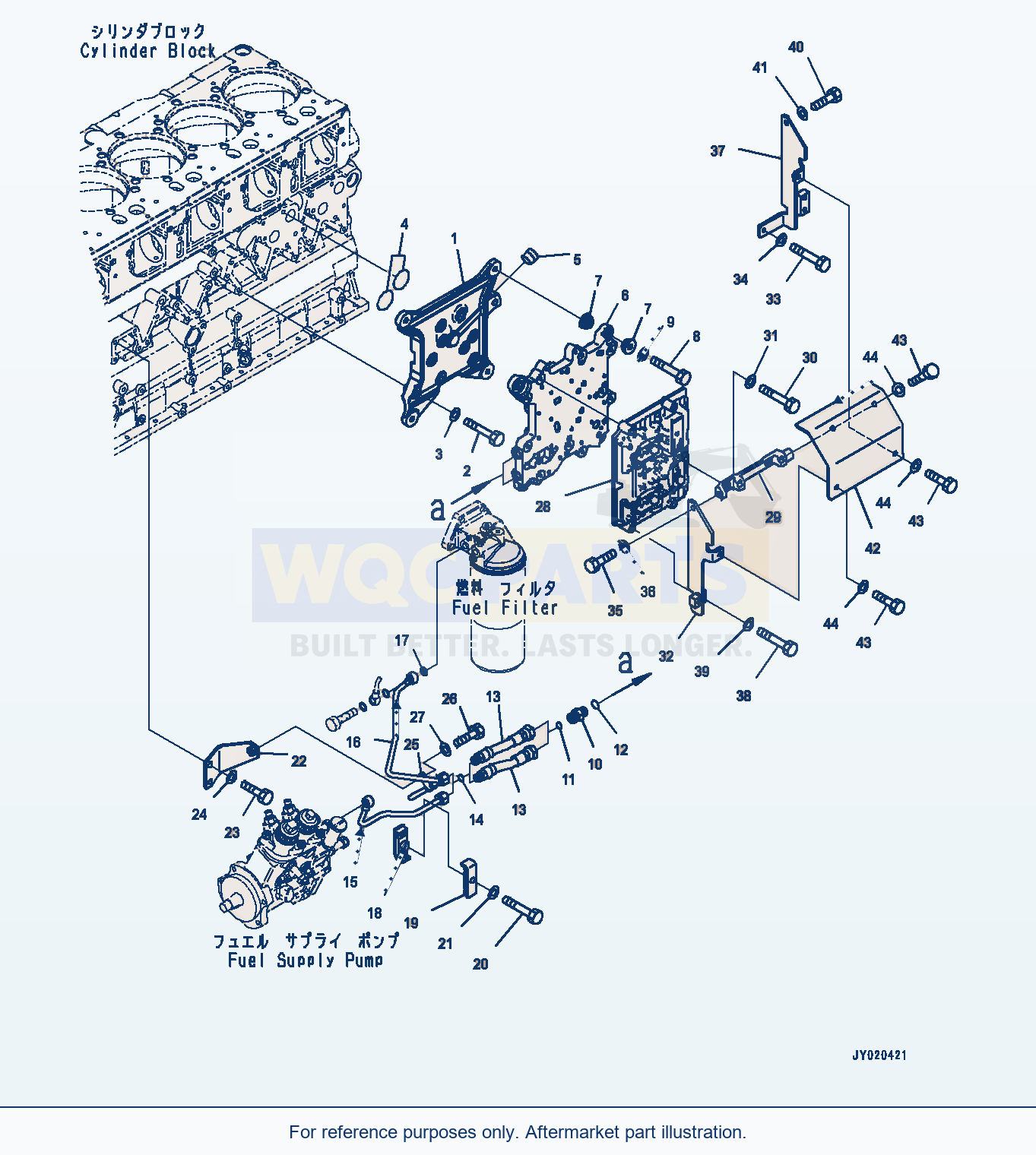

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 45 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BRACKETSN: 730016-UP | 1 | Request quote | |||
| 2 | BOLTSN: 730016-UP | 9 | Request quote | |||
| 3 | WASHERSN: 730016-UP | 9 | View product ↗ | |||
| 4 | O-RINGSN: 730016-UP, KIT-FLAG: S | 2 | Request quote | |||
| 5 | PLUGSN: 730016-UP | 1 | View product ↗ | |||
| 6 | COOLERSN: 730016-UP | 1 | Request quote | |||
| 7 | CUSHIONSN: 730016-UP | 8 | Request quote | |||
| 8 | BOLTSN: 730016-UP | 4 | Request quote | |||
| 9 | WASHERSN: 730016-UP | 4 | View product ↗ | |||
| 10 | UNIONSN: 730016-UP | 2 | Request quote | |||
| 11 | O-RINGSN: 730016-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 12 | O-RINGSN: 730016-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 13 | HOSESN: 730016-UP | 2 | Request quote | |||
| 14 | O-RINGSN: 730016-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 15 | TUBESN: 730016-UP | 1 | Request quote | |||
| 16 | TUBESN: 730016-UP | 1 | Request quote | |||
| 17 | SEAL, WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 18 | CLAMPSN: 730016-UP | 1 | Request quote | |||
| 19 | CLAMPSN: 730016-UP | 1 | Request quote | |||
| 20 | BOLTSN: 730016-UP | 1 | Request quote | |||
| 21 | WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 22 | BRACKETSN: 730016-UP | 1 | Request quote | |||
| 23 | BOLTSN: 730016-UP | 2 | Request quote | |||
| 24 | WASHERSN: 730016-UP | 2 | View product ↗ | |||
| 25 | CLIPSN: 730016-UP | 1 | Request quote | |||
| 26 | BOLTSN: 730016-UP | 1 | Request quote | |||
| 27 | WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 28 | CONTROLLER ASSEMBLYSN: 730016-UP | 1 | Request quote | |||
| 28 | CONTROLLER ASSEMBLYSN: 730016-730463, SCC: B1 | 1 | Request quote | |||
| 29 | BRACKETSN: 730016-UP | 1 | Request quote | |||
| 30 | BOLTSN: 730016-UP | 2 | Request quote | |||
| 31 | WASHERSN: 730016-UP | 2 | View product ↗ | |||
| 32 | BRACKETSN: 730016-UP | 1 | Request quote | |||
| 33 | BOLTSN: 730016-UP | 1 | Request quote | |||
| 34 | WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 35 | BOLTSN: 730016-UP | 1 | Request quote | |||
| 36 | WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 37 | BRACKETSN: 730016-UP | 1 | Request quote | |||
| 38 | BOLTSN: 730016-UP | 1 | Request quote | |||
| 39 | WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 40 | BOLTSN: 730016-UP | 1 | Request quote | |||
| 41 | WASHERSN: 730016-UP | 1 | View product ↗ | |||
| 42 | COVERSN: 730016-UP | 1 | Request quote | |||
| 43 | BOLTSN: 730016-UP | 4 | Request quote | |||
| 44 | WASHERSN: 730016-UP | 4 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-7 Wheel Loader Fuel Controller (#730016-) Parts
Use the Komatsu WA500-7 Wheel Loader Fuel Controller (#730016-) Parts listing to identify aftermarket replacement parts within the fuel system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 45 listed part occurrences, including bracket (reference 6261-81-7310), plug (reference 07043-70211) and cooler (reference 6219-81-7100). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D140E-6C (engine serial 730016-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
