Komatsu WA500-7 Marks And Plates, English, Eu Serial H62051-UP Parts
Komatsu WA500-7 marks and plates, english, eu serial h62051-up parts for machine serial H62051-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks / Plates / Marks And Plates, English, Eu / Marks And Plates, English, Eu.
Checking current purchase options...

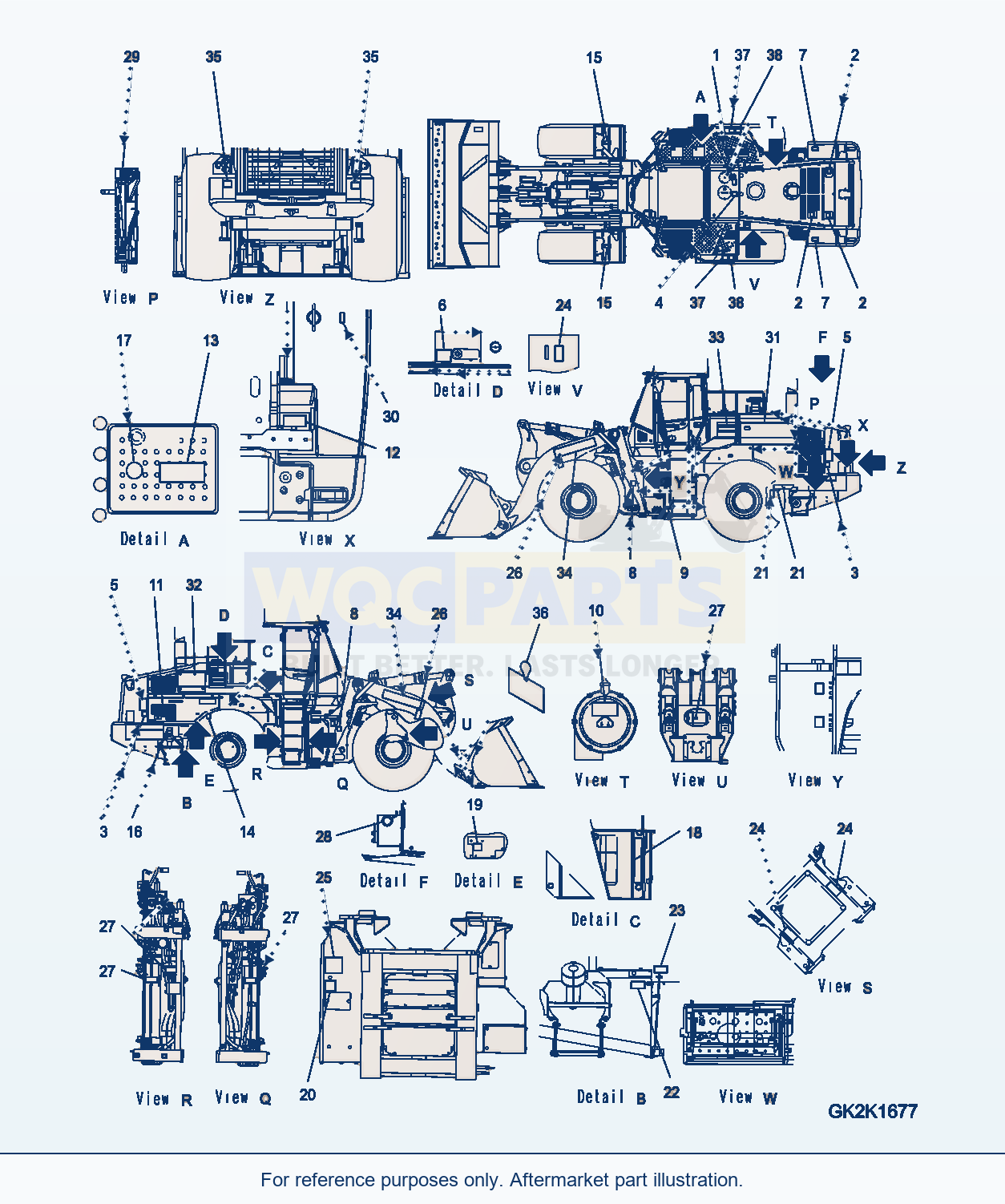

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 38 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, WARNING, HIGH TEMPERATURESN: H62051-UP | 1 | Request quote | |||
| 2 | PLATE, WARNING, HIGH TEMPERATURESN: H62051-UP | 3 | Request quote | |||
| 3 | PLATE, CAUTION, ROTATING OBJECTSN: H62051-UP | 2 | Request quote | |||
| 4 | PLATE, CAUTION, DO NOT APPROACHSN: H62051-UP | 1 | Request quote | |||
| 5 | PLATE, DANGER, KEEP AWAY FROM MACHINESN: H62051-UP | 2 | Request quote | |||
| 6 | PLATESN: H62051-UP | 1 | Request quote | |||
| 7 | PLATE, WARNING, BATTERY CABLESSN: H62051-UP | 2 | Request quote | |||
| 8 | PLATE, DANGER, KEEP OFFSN: H62051-UP | 2 | Request quote | |||
| 9 | PLATE, WARNING, ARTICULATION LOCKSN: H62051-UP | 1 | Request quote | |||
| 10 | PLATE, SERVICE INSTRUCTION, AIR CLEANERSN: H62051-UP | 1 | Request quote | |||
| 11 | PLATE, CAUTION, SPECIFIED FUEL FILTER USESN: H62051-UP | 1 | Request quote | |||
| 12 | PLATE, CAUTION, ROTATING OBJECTSN: H62051-UP | 1 | Request quote | |||
| 13 | PLATE, SERVICE INSTRUCTIONSN: H62051-UP | 1 | Request quote | |||
| 14 | PLATE, PRE FILTER CAUTIONSN: H62051-UP | 1 | Request quote | |||
| 15 | PLATE, CAUTION, DO NOT GET ONSN: H62051-UP | 2 | Request quote | |||
| 16 | PLATE, FUELSN: H62051-UP | 1 | Request quote | |||
| 17 | PLATE, SYMBOL, COOLANT FILLERSN: H62051-UP | 1 | Request quote | |||
| 18 | PLATE, RADIATOR RESERVE TANK LEVELSN: H62051-UP | 1 | Request quote | |||
| 19 | PLATE, FUEL PRIMING PUMP SWITCHSN: H62051-UP | 1 | Request quote | |||
| 20 | PLATE, PARKING BRAKE EMERGENCY RELEASED SWITCHSN: H62051-UP | 1 | Request quote | |||
| 21 | PLATE, WATER DRAINSN: H62051-UP | 2 | Request quote | |||
| 22 | PLATE, ENGINE OIL DRAINSN: H62051-UP | 1 | Request quote | |||
| 23 | PLATE, FUEL TANK DRAINSN: H62051-UP | 1 | Request quote | |||
| 24 | MARK, LIFT POINT AND TIE DOWN POINT MARKSSN: H62051-UP | 4 | Request quote | |||
| 25 | LUBRICATION CHARTSN: H62051-UP | 1 | Request quote | |||
| 26 | PLATE, DANGER, KEEP OUT UNDER WORK EQUIPMENTSN: H62051-UP | 2 | Request quote | |||
| 27 | PLATE, WARNING, EXPLOSION HAZARDSN: H62051-UP | 4 | Request quote | |||
| 28 | PLATE, CAUTION, RADIATOR CAPSN: H62051-UP | 1 | Request quote | |||
| 29 | PLATE, WARNING, EXPLOSION HAZARDSN: H62051-UP | 2 | Request quote | |||
| 30 | PLATE, TOW HOOKSN: H62051-UP | 1 | Request quote | |||
| 31 | PLATE, MACHINE MODELSN: H62051-UP | 1 | Request quote | |||
| 32 | PLATE, MACHINE MODELSN: H62051-UP | 1 | Request quote | |||
| 33 | PLATE, STRIPESN: H62051-UP | 1 | Request quote | |||
| 34 | PLATE, KOMATSU LOGOSN: H62051-UP | 2 | Request quote | |||
| 35 | PLATE, REFLECTORSN: H62051-UP | 2 | Request quote | |||
| 36 | TAG, DANGER, DO NOT OPERATESN: H62051-UP | 1 | Request quote | |||
| 37 | PLATE, CAUTION, DO NOT GET ONSN: H62051-UP | 2 | Request quote | |||
| 38 | PLATE, SYMBOL, LOCK/UNLOCKSN: H62051-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-7 Marks And Plates, English, Eu Serial H62051-UP Parts
Use the Komatsu WA500-7 Marks And Plates, English, Eu Serial H62051-UP Parts listing to identify aftermarket replacement parts within the marks / plates section. This wheel loader application is listed for machine serial H62051-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 38 listed part occurrences, including plate, warning, high temperature (reference 09653-A0641), plate, caution, rotating object (reference 09667-A0880) and plate, caution, do not approach (reference 09805-A0881). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
