Komatsu WA500-7 Wheel Loader Boom Cylinder Mounting Pins Parts
Komatsu WA500-7 boom cylinder mounting pins parts for serial A94001-UP. View the diagram, part numbers, quantities and configuration notes; shop or request a quote.
Catalog configuration: Boom Cylinder Mounting Pins.
Checking current purchase options...

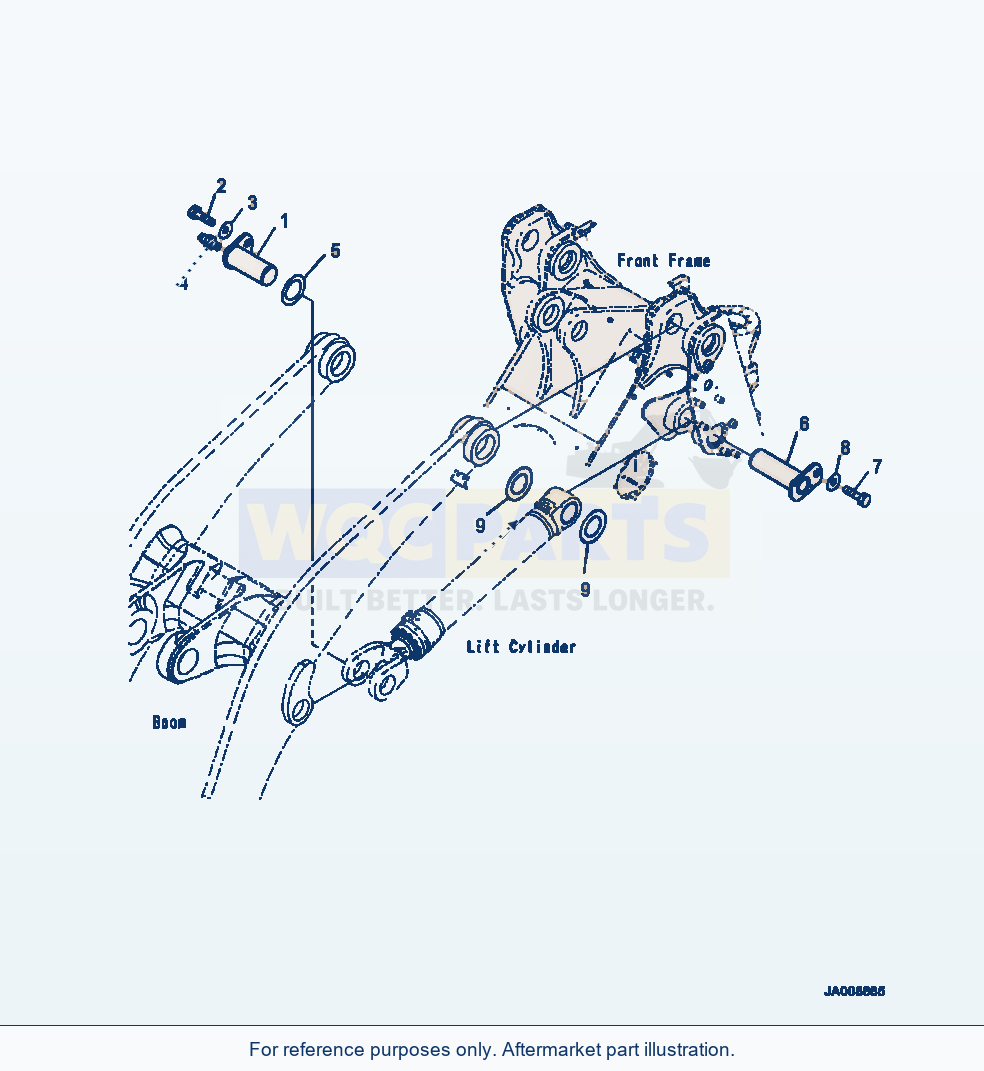

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PIN, CYLINDER TO BOOM | 2 | View product ↗ | |||
| 2 | BOLT | 2 | Request quote | |||
| 3 | WASHER | 2 | View product ↗ | |||
| 4 | FITTING, GREASE | 2 | View product ↗ | |||
| 5 | SHIM, T=1.5 MM | 2 | Request quote | |||
| 6 | PIN, CYLINDER TO FRAME | 2 | View product ↗ | |||
| 7 | BOLT | 2 | Request quote | |||
| 8 | WASHER | 2 | View product ↗ | |||
| 9 | SHIM, T=1.5 MM | 2 | View product ↗ | |||
| 9 | SHIM, T=3.0 MM | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-7 Wheel Loader Boom Cylinder Mounting Pins Parts
Use the Komatsu WA500-7 Wheel Loader Boom Cylinder Mounting Pins Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial A94001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including pin, cylinder to boom (reference 425-70-31970), fitting, grease (reference 07020-00000) and shim, t=1.5 mm (reference 425-70-11411). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
