Komatsu WA500-8 Wheel Loader General Tool Set (#90001-) Parts
Komatsu WA500-8 general tool set (#90001-) parts for machine serial 90001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Accessories / Tools / General Tool Set / General Tool Set (#90001-).
Checking current purchase options...

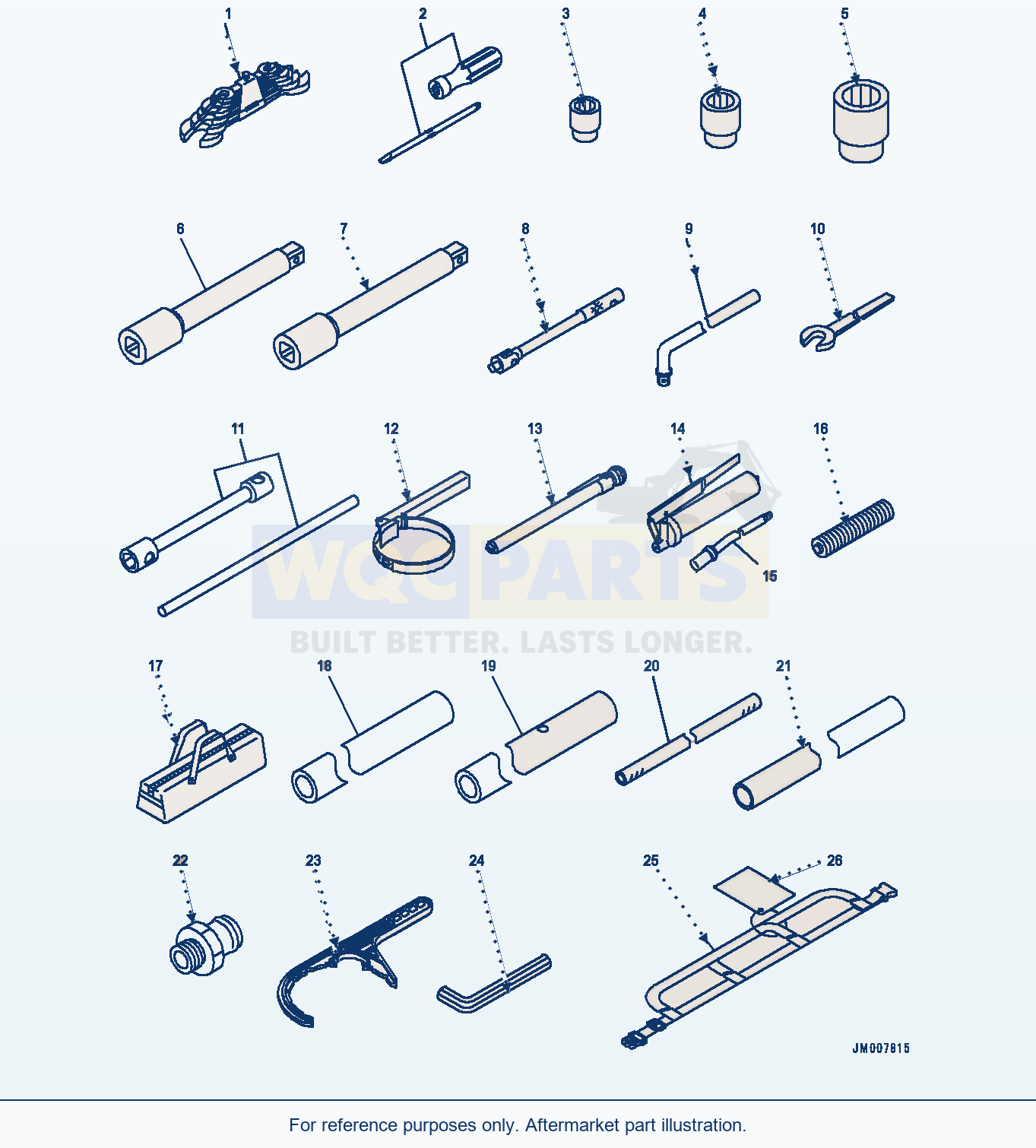

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 34 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WRENCH SETSN: 90001-UP | 1 | Request quote | |||
| 1 | WRENCH, W=8X10MMSN: 90001-UP | 1 | Request quote | |||
| 1 | WRENCH, W=12X14MMSN: 90001-UP | 1 | Request quote | |||
| 1 | WRENCH, W=13X17MMSN: 90001-UP | 1 | Request quote | |||
| 1 | WRENCH, W=19X22MMSN: 90001-UP | 1 | Request quote | |||
| 1 | WRENCH, W=24X27MMSN: 90001-UP | 1 | Request quote | |||
| 1 | WRENCH, W=30X32MMSN: 90001-UP | 1 | Request quote | |||
| 2 | DRIVERSN: 90001-UP | 1 | Request quote | |||
| 3 | SOCKET, W=19MMSN: 90001-UP | 1 | Request quote | |||
| 4 | SOCKET, W=24MMSN: 90001-UP | 1 | Request quote | |||
| 5 | SOCKET, W=36MMSN: 90001-UP | 1 | Request quote | |||
| 6 | EXTENSION, L=150MMSN: 90001-UP | 1 | Request quote | |||
| 7 | EXTENSION, L=200MMSN: 90001-UP | 1 | Request quote | |||
| 8 | HANDLESN: 90001-UP | 1 | Request quote | |||
| 9 | HANDLESN: 90001-UP | 1 | Request quote | |||
| 10 | WRENCHSN: 90001-UP | 1 | Request quote | |||
| 11 | WRENCHSN: 90001-UP | 1 | Request quote | |||
| 12 | WRENCH, FILTERSN: 90001-UP | 1 | Request quote | |||
| 13 | GAUGE, TIRE INFLATION PRESSURESN: 90001-UP | 1 | Request quote | |||
| 13 | PUMP ASSEMBLYSN: 90001-UP | 1 | Request quote | |||
| 14 | GREASE PUMPSN: 90001-UP | 1 | Request quote | |||
| 15 | NOZZLESN: 90001-UP | 1 | Request quote | |||
| 16 | CARTRIDGE, GREASESN: 90001-UP | 1 | Request quote | |||
| 17 | BAGSN: 90001-UP | 1 | Request quote | |||
| 18 | HOSESN: 90001-UP | 1 | Request quote | |||
| 19 | HOSESN: 90001-UP | 1 | Request quote | |||
| 20 | HOSESN: 90001-UP | 1 | Request quote | |||
| 21 | HOSESN: 90001-UP | 1 | Request quote | |||
| 22 | NIPPLESN: 90001-UP | 1 | Request quote | |||
| 23 | WRENCHSN: 90001-UP | 1 | Request quote | |||
| 24 | WRENCH, W=10MMSN: 90001-UP | 1 | Request quote | |||
| 31 | BAND ASSEMBLYSN: 90001-UP | 1 | Request quote | |||
| 25 | BANDSN: 90001-UP | 1 | Request quote | |||
| 26 | PLATE, AIR CLEANER PULL-OUT JIGSN: 90001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA500-8 Wheel Loader General Tool Set (#90001-) Parts
Use the Komatsu WA500-8 Wheel Loader General Tool Set (#90001-) Parts listing to identify aftermarket replacement parts within the accessories / tools section. This wheel loader application is listed for machine serial 90001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 34 listed part occurrences, including wrench set (reference 09000-30006), wrench, w=8x10mm (reference 09002-00810) and wrench, w=12x14mm (reference 09002-01214). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
