Komatsu WA600-1 Brake Oil Piping (Tank To Chamber)(#10495-) Parts
Komatsu WA600-1 brake oil piping (tank to chamber)(#10495-) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Differential And Wheels / Brake Oil Piping (Tank To Chamber)(#10495-).
Checking current purchase options...

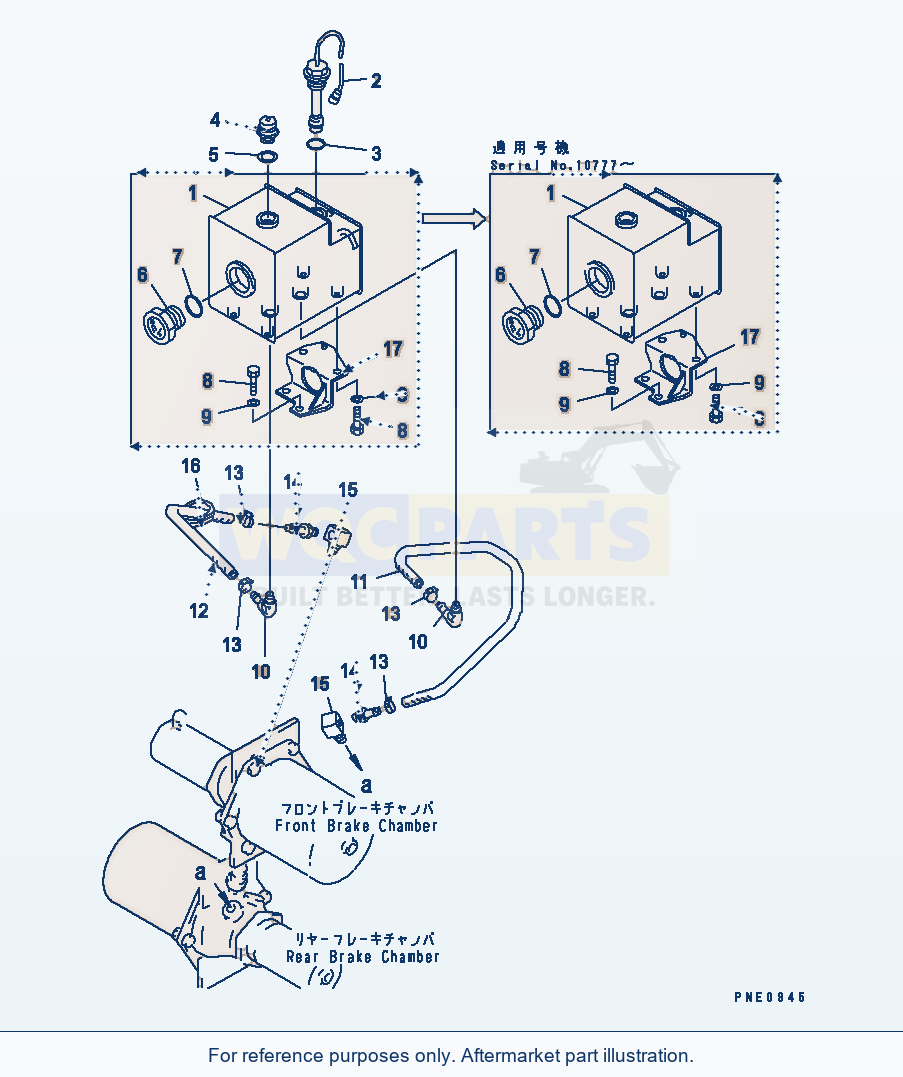

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TANK,BRAKE OILSN: 10777-UP | 1 | Request quote | |||
| 1 | TANK,BRAKE OILSN: 10495-10776 | 1 | Request quote | |||
| 2 | SENSOR,BRAKE OIL LEVELSN: .-UP | 1 | Request quote | |||
| 3 | O-RINGSN: 10001-UP | 1 | View product ↗ | |||
| 4 | BREATHERSN: 10001-UP | 1 | Request quote | |||
| 5 | GASKETSN: 10001-UP | 1 | View product ↗ | |||
| 6 | GAUGE,SIGHTSN: 10343-UP | 1 | View product ↗ | |||
| 7 | O-RINGSN: 10001-UP | 1 | View product ↗ | |||
| 8 | BOLTSN: 10200-UP | 6 | Request quote | |||
| 9 | WASHERSN: 10200-UP | 6 | View product ↗ | |||
| 10 | ELBOWSN: 10001-UP | 2 | Request quote | |||
| 11 | HOSESN: 10001-UP | 1 | Request quote | |||
| 12 | HOSESN: 10187-UP | 1 | Request quote | |||
| 13 | CLAMPSN: 10001-UP | 4 | Request quote | |||
| 14 | NIPPLESN: 10001-UP | 2 | Request quote | |||
| 15 | ELBOWSN: 10001-UP | 2 | Request quote | |||
| 16 | GROMMETSN: 10001-UP | 1 | Request quote | |||
| 17 | BRACKETSN: 10200-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA600-1 Brake Oil Piping (Tank To Chamber)(#10495-) Parts
Use the Komatsu WA600-1 Brake Oil Piping (Tank To Chamber)(#10495-) Parts listing to identify aftermarket replacement parts within the drive shaft, differential and wheels section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 18 listed part occurrences, including tank,brake oil (reference 426-35-15553), tank,brake oil (reference 426-35-15552) and sensor,brake oil level (reference 7861-91-4150). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
