Komatsu WA600-1 Wheel Loader Bucket Parts
Komatsu WA600-1 bucket parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Parts Books / Bucket.
Checking current purchase options...

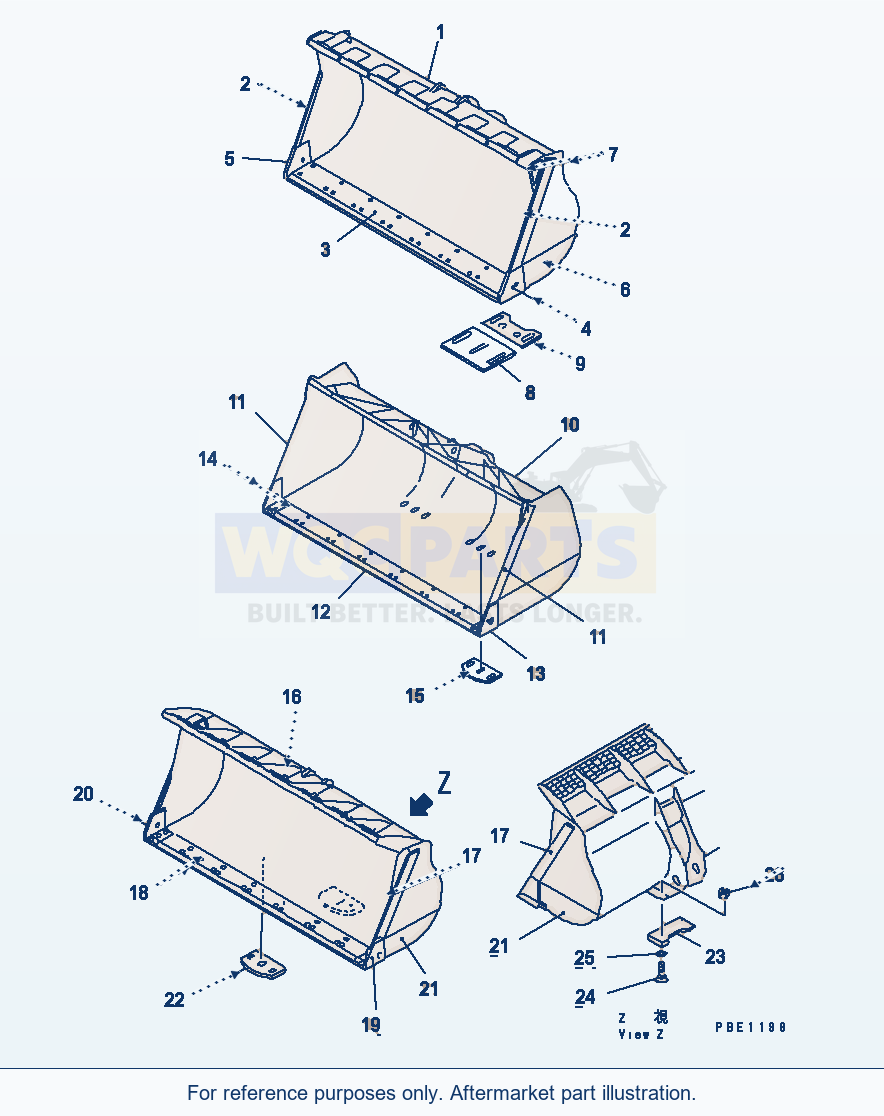

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BUCKET ASS'YSN: 10865-UP | 1 | Request quote | |||
| 2 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 3 | EDGE (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 3 | PLATE (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 4 | CORNER,L.H. (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 5 | CORNER,R.H. (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 6 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 7 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 8 | PLATESN: 10865-UP | 2 | Request quote | |||
| 9 | PLATESN: 10865-UP | 2 | Request quote | |||
| 10 | BUCKETSN: 10865-UP | 1 | Request quote | |||
| 11 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 12 | EDGE (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 12 | EDGE (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 13 | CORNER,L.H. (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 14 | CORNER,R.H. (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 15 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 16 | BUCKET ASS'YSN: 10865-UP | 1 | Request quote | |||
| 17 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 18 | EDGE (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 18 | PLATE (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 19 | CORNER,L.H. (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 20 | CORNER,R.H. (WELDED)SN: 10865-UP | 1 | Request quote | |||
| 21 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 22 | PLATE (WELDED)SN: 10865-UP | 2 | Request quote | |||
| 23 | PLATESN: 10865-UP | 2 | Request quote | |||
| 24 | BOLTSN: 10865-UP | 8 | Request quote | |||
| 25 | WASHERSN: 10865-UP | 8 | Request quote | |||
| 26 | NUTSN: 10865-UP | 8 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
3.1M3 BUCKET
10.8M3 COAL BUCKET
EXCAVATING BUCKET
5.4M3 BUCKET
Using Komatsu WA600-1 Wheel Loader Bucket Parts
Use the Komatsu WA600-1 Wheel Loader Bucket Parts listing to identify aftermarket replacement parts within the parts books section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 29 listed part occurrences, including bucket ass'y (reference 426-V77-1110), plate (welded) (reference 426-806-1131) and edge (welded) (reference 426-V77-1120). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
