Komatsu WA600-1LC Wheel Loader Wheel Brake Chamber Parts
Komatsu WA600-1LC wheel brake chamber parts for machine serial A50001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft / Wheel Brake Chamber.
Checking current purchase options...

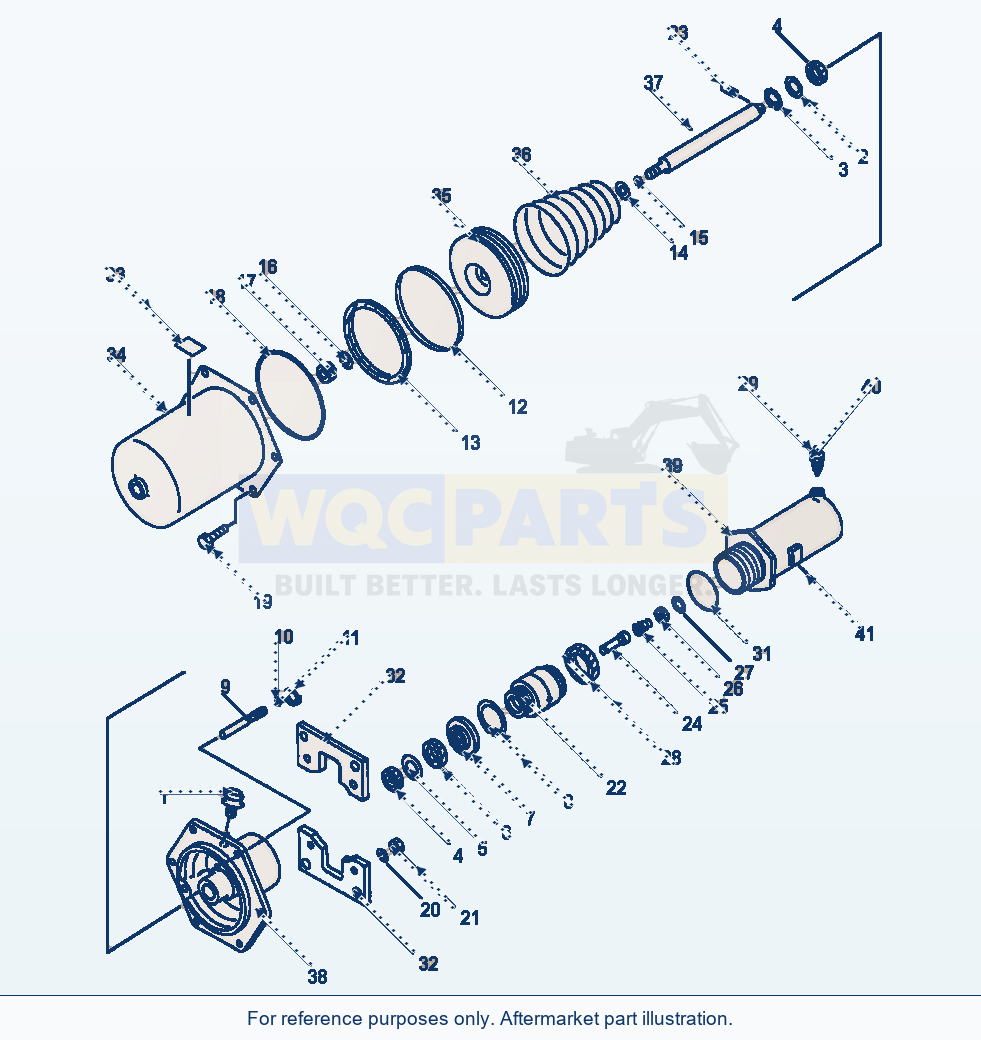

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 42 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CHAMBER ASSEMBLY, BRAKE | 2 | View product ↗ | |||
| 1 | BREATHER | 1 | Request quote | |||
| 2 | RINGF1 | 1 | Request quote | |||
| 3 | RING, SNAP | 1 | View product ↗ | |||
| 4 | PACKINGF1 | 2 | Request quote | |||
| 5 | SEATF1 | 1 | Request quote | |||
| 6 | PACKINGF1 | 1 | Request quote | |||
| 7 | RING | 1 | Request quote | |||
| 8 | RING, SNAP | 1 | View product ↗ | |||
| 9 | ROD, STROKE INDICATOR | 1 | Request quote | |||
| 10 | O-RINGF1 | 1 | View product ↗ | |||
| 11 | RING | 1 | Request quote | |||
| 12 | RINGF1 | 1 | Request quote | |||
| 13 | PACKINGF1 | 1 | Request quote | |||
| 14 | WASHER | 1 | Request quote | |||
| 15 | O-RINGF1 | 1 | View product ↗ | |||
| 16 | WASHER, SPRING | 1 | Request quote | |||
| 17 | NUT | 1 | Request quote | |||
| 18 | O-RINGF1 | 1 | Request quote | |||
| 19 | BOLT | 6 | Request quote | |||
| 20 | WASHER, SPRING | 6 | Request quote | |||
| 21 | NUT | 6 | View product ↗ | |||
| 22 | PISTON | 1 | Request quote | |||
| 23 | PIN | 1 | Request quote | |||
| 24 | VALVEF1 | 1 | Request quote | |||
| 25 | SPRINGF1 | 1 | Request quote | |||
| 26 | SEAT | 1 | Request quote | |||
| 27 | RING | 1 | Request quote | |||
| 28 | PACKINGF1 | 1 | View product ↗ | |||
| 29 | BLEEDER | 1 | Request quote | |||
| 31 | O-RINGF1 | 1 | Request quote | |||
| 32 | PLATE | 2 | Request quote | |||
| 33 | PLATE, CAUTION | 1 | Request quote | |||
| 34 | AIR CYLINDER | 1 | Request quote | |||
| 35 | PISTON | 1 | Request quote | |||
| 36 | SPRING | 1 | Request quote | |||
| 37 | ROD | 1 | Request quote | |||
| 38 | COVER | 1 | Request quote | |||
| 39 | NUT | 1 | Request quote | |||
| 40 | CAP | 1 | Request quote | |||
| 41 | CYLINDER | 1 | Request quote | |||
| 42 | SERVICE KIT, WHEEL BRAKE CHAMBER | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
F1 - INCLUDED IN SERVICE KIT 424-35-05111.
Using Komatsu WA600-1LC Wheel Loader Wheel Brake Chamber Parts
Use the Komatsu WA600-1LC Wheel Loader Wheel Brake Chamber Parts listing to identify aftermarket replacement parts within the drive shaft section. This wheel loader application is listed for machine serial A50001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 42 listed part occurrences, including chamber assembly, brake (reference 421-35-13303), breather (reference 424-35-15580) and ring (reference 424-35-15590). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
