Komatsu WA600-1LC Electrical System Console Box, R.H. Parts
Komatsu WA600-1LC electrical system console box, r.h. parts for machine serial A50001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Electrical System Console Box, R.H..
Checking current purchase options...

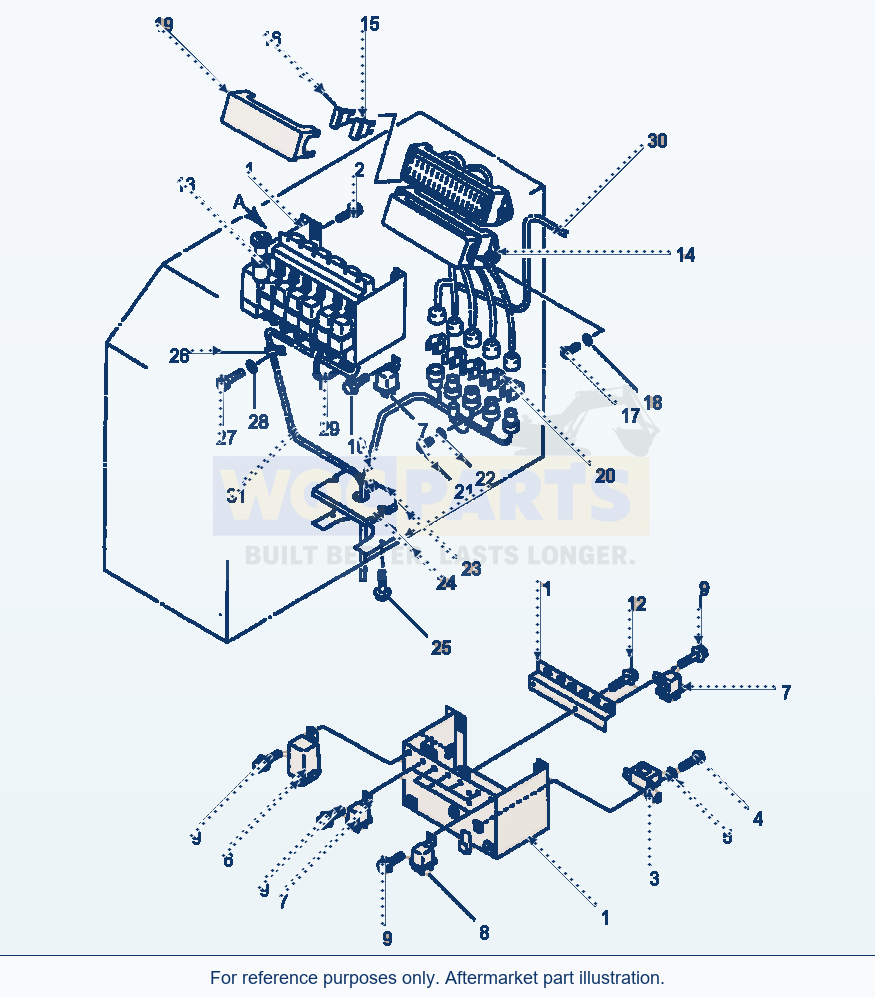

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BOX, RELAYS | 1 | Request quote | |||
| 2 | BOLT, MOUNT RELAY BOX | 4 | Request quote | |||
| 3 | BUZZER | 1 | Request quote | |||
| 4 | SCREW, MOUNT BUZZER | 2 | Request quote | |||
| 5 | WASHER | 2 | Request quote | |||
| 6 | FLASHER | 1 | Request quote | |||
| 7 | RELAY | 10 | Request quote | |||
| 7 | BRACKET | 1 | Request quote | |||
| 8 | RELAY | 3 | View product ↗ | |||
| 9 | BRACKET | 1 | Request quote | |||
| 9 | BOLT, MOUNT RELAYS AND FLASHER | 14 | Request quote | |||
| 10 | BOLT, MOUNT RELAYS AND FLASHER | 1 | Request quote | |||
| 11 | HOLDER, RELAY | 1 | Request quote | |||
| 12 | BOLT, MOUNT HOLDER | 2 | Request quote | |||
| 13 | LIGHTER, CIGAR | 1 | Request quote | |||
| 14 | BOX ASSEMBLY, FUSE | 2 | Request quote | |||
| 15 | FUSE, 20A | 5 | View product ↗ | |||
| 16 | FUSE, 10A | 19 | View product ↗ | |||
| 17 | SCREW, MOUNT FUSE BOX | 4 | Request quote | |||
| 18 | WASHER | 4 | Request quote | |||
| 19 | COVER, FUSE BOX | 2 | Request quote | |||
| 20 | CLIP, HARNESS CONNECTORS | 5 | Request quote | |||
| 21 | SCREW, MOUNT CLIPS | 5 | Request quote | |||
| 22 | WASHER | 5 | View product ↗ | |||
| 23 | SHEET | 1 | Request quote | |||
| 24 | PLATE | 1 | Request quote | |||
| 25 | BOLT, MOUNT PLATE | 2 | Request quote | |||
| 26 | CLIP, HARNESS | 2 | Request quote | |||
| 27 | BOLT, MOUNT CLIP | 2 | Request quote | |||
| 28 | WASHER | 2 | View product ↗ | |||
| 29 | STRAP, TIE DOWN | 5 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
HARNESS, LH CONSOLE BOX (SEE PG 01-042)
HARNESS, FLOOR LINE (SEE PG 01-058)
Using Komatsu WA600-1LC Electrical System Console Box, R.H. Parts
Use the Komatsu WA600-1LC Electrical System Console Box, R.H. Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A50001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including box, relays (reference 424-06-11732), buzzer (reference 207-06-31160) and flasher (reference 22W-06-13251). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
