Komatsu WA600-1LC Wheel Loader Electrical System Rear Lights Parts
Komatsu WA600-1LC electrical system rear lights parts for machine serial A50001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Electrical System Rear Lights.
Checking current purchase options...

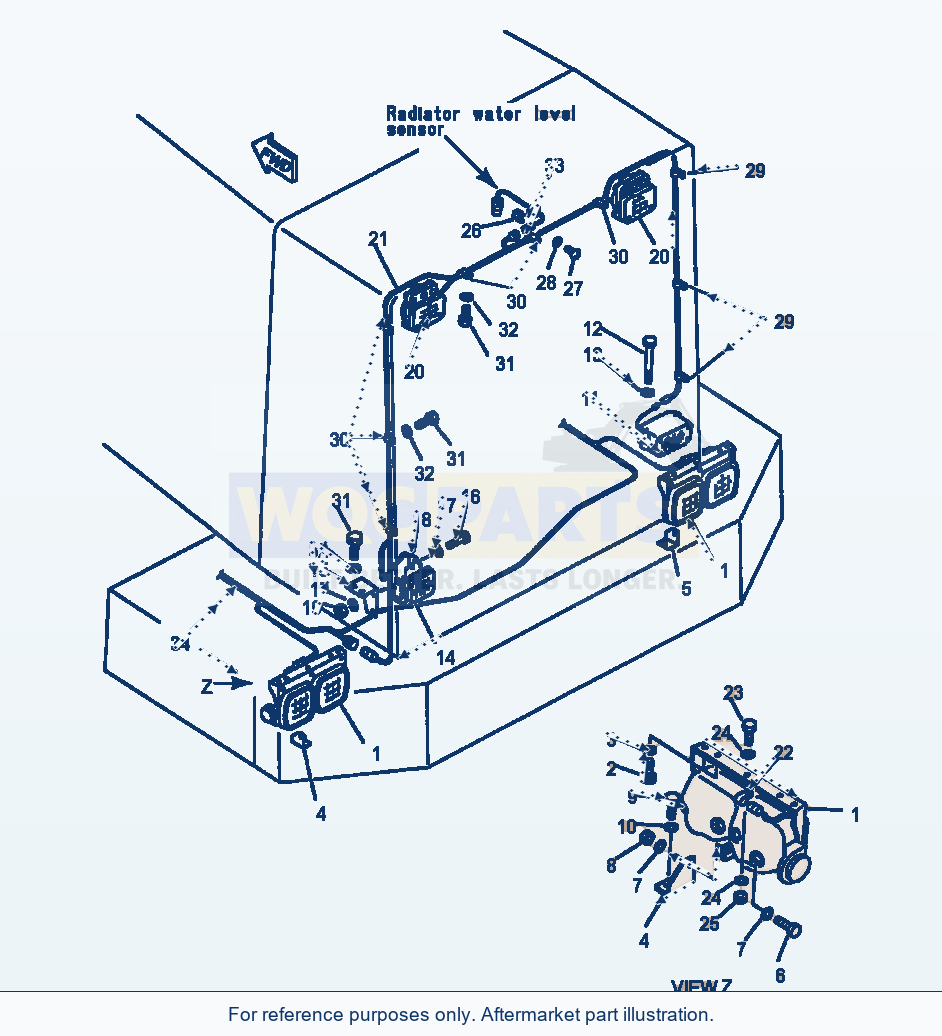

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 40 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | LIGHT ASSEMBLY, REAR L.H | 1 | Request quote | |||
| 1 | LIGHT ASSEMBLY, REAR R.H | 1 | Request quote | |||
| 2 | LENS, STOP LAMP | 1 | Request quote | |||
| 3 | LENS, TURN SIGNAL LAMP | 1 | Request quote | |||
| 4 | BULB, 25W | 1 | View product ↗ | |||
| 5 | BULB, 25/10W | 1 | View product ↗ | |||
| 6 | BULB, 3W | 1 | Request quote | |||
| 2 | BOLT | 4 | View product ↗ | |||
| 3 | WASHER | 4 | View product ↗ | |||
| 4 | BRACKET, L.H | 1 | Request quote | |||
| 5 | BRACKET, R.H | 1 | Request quote | |||
| 6 | BOLT | 2 | View product ↗ | |||
| 7 | WASHER | 4 | View product ↗ | |||
| 8 | NUT | 2 | Request quote | |||
| 9 | BOLT | 2 | View product ↗ | |||
| 10 | WASHER | 2 | View product ↗ | |||
| 11 | BUZZER, BACK-UP ALARM | 1 | Request quote | |||
| 12 | BOLT | 2 | Request quote | |||
| 13 | WASHER | 2 | Request quote | |||
| 14 | LIGHT ASSEMBLY, BACK UP | 1 | Request quote | |||
| 20 | LENS | 1 | Request quote | |||
| 21 | BULB, 25W | 1 | View product ↗ | |||
| 15 | PLATE | 1 | Request quote | |||
| 16 | BOLT | 2 | Request quote | |||
| 17 | WASHER | 4 | View product ↗ | |||
| 18 | CLIP | 1 | Request quote | |||
| 19 | NUT | 2 | Request quote | |||
| 21 | HARNESS, REAR LIGHTS | 1 | Request quote | |||
| 22 | CLIP | 2 | Request quote | |||
| 23 | BOLT | 2 | Request quote | |||
| 24 | WASHER | 4 | View product ↗ | |||
| 25 | NUT | 2 | Request quote | |||
| 26 | CLIP | 1 | Request quote | |||
| 27 | SCREW | 1 | Request quote | |||
| 28 | WASHER | 1 | View product ↗ | |||
| 29 | CLIP | 3 | Request quote | |||
| 30 | CLIP | 6 | Request quote | |||
| 31 | BOLT | 9 | Request quote | |||
| 32 | WASHER | 9 | View product ↗ | |||
| 33 | GROMMET | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
WORK LAMP ASSEMBLY (SEE PG 01-076)
HARNESS, REAR FRAME LINE (SEE PG 01-060)
Using Komatsu WA600-1LC Wheel Loader Electrical System Rear Lights Parts
Use the Komatsu WA600-1LC Wheel Loader Electrical System Rear Lights Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A50001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 40 listed part occurrences, including light assembly, rear l.h (reference 421-06-13730), light assembly, rear r.h (reference 421-06-13820) and lens, stop lamp (reference 421-06-13740). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
