Komatsu WA600-1LE Wheel Loader Front And Rear Axle Wheel Brake Parts
Komatsu WA600-1LE front and rear axle wheel brake parts for machine serial A51001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Drive Shaft, Axles Wheels & Brake Systems / Front And Rear Axle Wheel Brake.
Checking current purchase options...

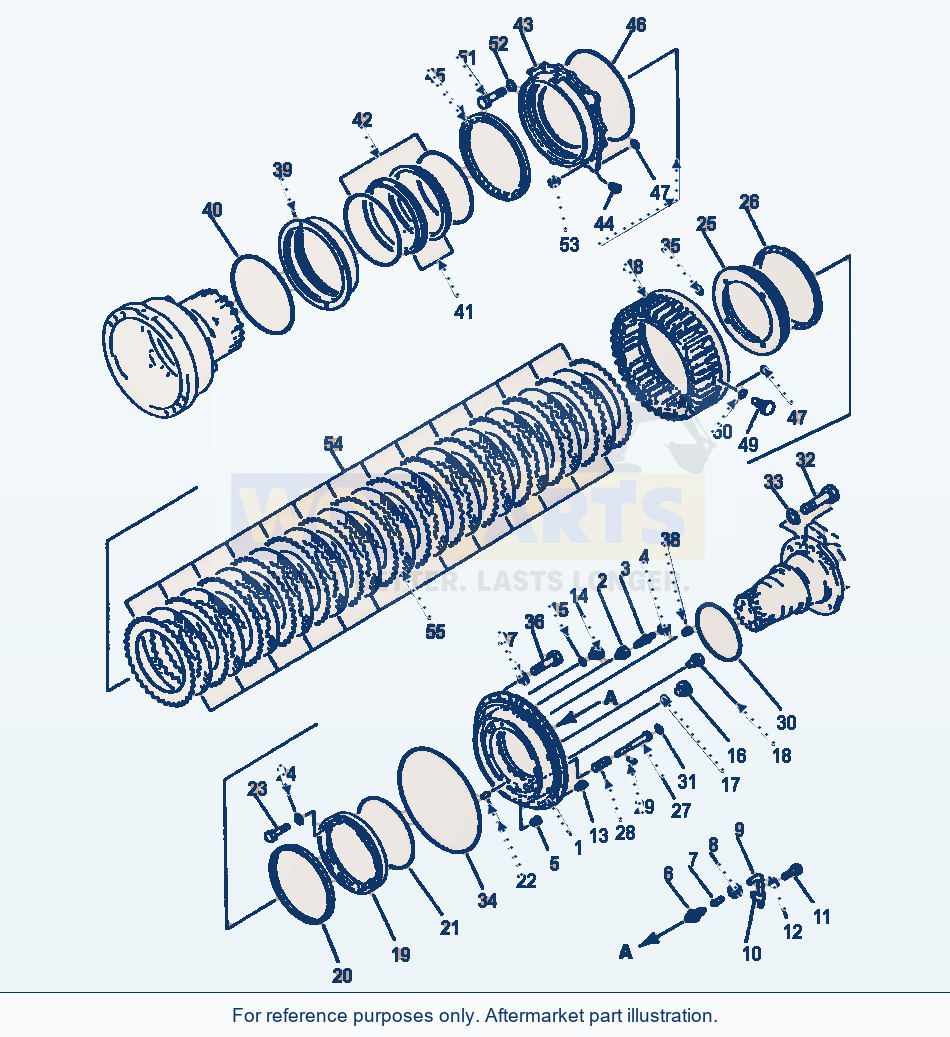

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 58 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BRAKE ASSEMBLY | 2 | Request quote | |||
| 1 | CYLINDER | 1 | Request quote | |||
| 2 | PLUG | 1 | Request quote | |||
| 3 | BLEEDER | 1 | Request quote | |||
| 4 | CAP | 1 | View product ↗ | |||
| 5 | PLUG | 1 | Request quote | |||
| 6 | CONNECTOR | 1 | Request quote | |||
| 7 | SLEEVE | 1 | Request quote | |||
| 8 | NUT, SLEEVE | 1 | Request quote | |||
| 9 | TUBE | 1 | Request quote | |||
| 10 | CLIP | 1 | Request quote | |||
| 11 | BOLT | 1 | Request quote | |||
| 12 | WASHER | 1 | View product ↗ | |||
| 13 | PLUG | 1 | Request quote | |||
| 14 | PLUG | 2 | View product ↗ | |||
| 15 | O-RING, PLUGF1 | 2 | View product ↗ | |||
| 16 | PLUG (FOR SHIPPING) | 1 | View product ↗ | |||
| 17 | O-RING, PLUG (FOR SHIPPING)F1 | 1 | View product ↗ | |||
| 18 | PLUG | 2 | Request quote | |||
| 19 | SLEEVE | 1 | Request quote | |||
| 20 | SEAL, SLEEVEF1 | 1 | View product ↗ | |||
| 21 | O-RING, SLEEVEF1 | 1 | View product ↗ | |||
| 22 | PIN, DOWEL | 2 | View product ↗ | |||
| 23 | BOLT | 9 | View product ↗ | |||
| 24 | WASHER | 9 | View product ↗ | |||
| 25 | PISTON | 1 | Request quote | |||
| 26 | SEAL, PISTONF1 | 1 | View product ↗ | |||
| 27 | GUIDE | 4 | Request quote | |||
| 28 | SPRING | 4 | Request quote | |||
| 29 | PIN, DOWEL | 4 | View product ↗ | |||
| 30 | O-RING, CYLINDERF1 | 1 | View product ↗ | |||
| 31 | O-RING, GUIDEF1 | 4 | View product ↗ | |||
| 32 | BOLT | 15 | View product ↗ | |||
| 33 | WASHER | 15 | Request quote | |||
| 34 | O-RING, CYLINDERF1 | 1 | Request quote | |||
| 35 | O-RING, GEARF1 | 2 | Request quote | |||
| 36 | BOLT | 24 | View product ↗ | |||
| 37 | WASHER | 24 | View product ↗ | |||
| 38 | PLUG | 3 | View product ↗ | |||
| 39 | RETAINER | 1 | Request quote | |||
| 40 | O-RING, RETAINERF1 | 1 | View product ↗ | |||
| N/I | SEAL ASSEMBLY, FLOATING | 1 | Request quote | |||
| 41 | SEAL RING ASSEMBLY | 1 | Request quote | |||
| 42 | O-RING ASSEMBLY | 1 | Request quote | |||
| 43 | HUB | 1 | Request quote | |||
| 44 | PLUG | 2 | View product ↗ | |||
| 45 | SEAL, HUBF1 | 1 | View product ↗ | |||
| 46 | O-RING, HUBF1 | 1 | Request quote | |||
| 47 | O-RING, HUBF1 | 2 | View product ↗ | |||
| 48 | GEAR | 1 | Request quote | |||
| 49 | PLUG | 2 | Request quote | |||
| 50 | O-RING, PLUGF1 | 2 | View product ↗ | |||
| 51 | BOLT | 16 | View product ↗ | |||
| 52 | WASHER | 16 | View product ↗ | |||
| 53 | PLUG | 3 | View product ↗ | |||
| 54 | PLATE | 14 | View product ↗ | |||
| 55 | DISC | 13 | View product ↗ | |||
| N/I | SERVICE KIT, WHEEL BRAKE | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
AXLE ASSEMBLY, FRONT (SEE PG 03-010)
AXLE ASSEMBLY, REAR (SEE PG 03-022)
F1 - INCLUDED IN SERVICE KIT 426-33-05011.
Using Komatsu WA600-1LE Wheel Loader Front And Rear Axle Wheel Brake Parts
Use the Komatsu WA600-1LE Wheel Loader Front And Rear Axle Wheel Brake Parts listing to identify aftermarket replacement parts within the drive shaft, axles wheels & brake systems section. This wheel loader application is listed for machine serial A51001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 58 listed part occurrences, including brake assembly (reference 426-33-11004), cylinder (reference 426-33-11110) and plug (reference 581-32-12140). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For axle, driveline and brake-related parts, follow the assembly location and machine serial applicability. Keep front/rear and left/right distinctions, along with any equipment options recorded in the parts list.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
