Komatsu WA600-1LE Wheel Loader Front Frame Parts
Komatsu WA600-1LE front frame parts for machine serial A51001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame, Guard & Superstructure / Front Frame.
Checking current purchase options...

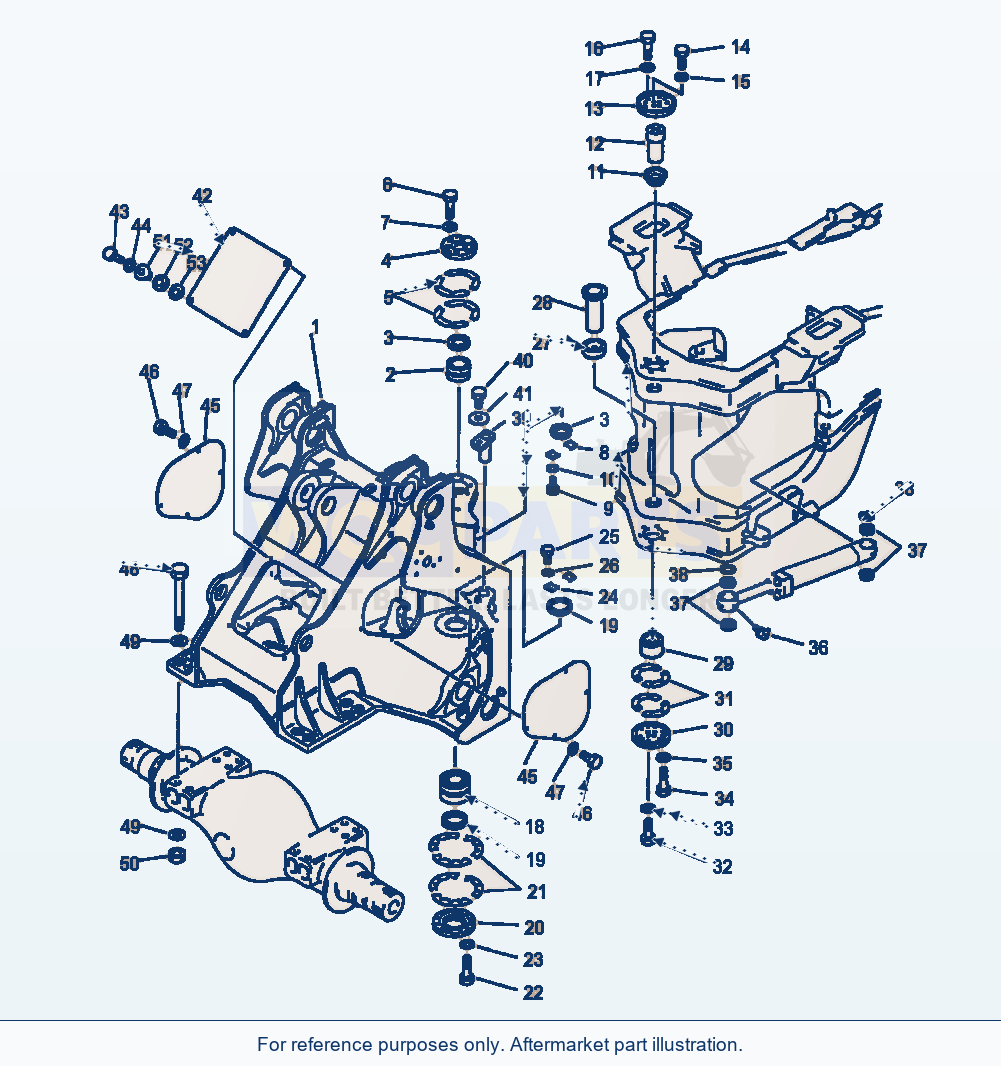

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 58 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FRAME, FRONT-FOR MACHINES W/O THE FOLLOWING OPTION | - | Request quote | |||
| 1 | FRAME, FRONT - FOR MACHINES W/ ELECTONICALLY CONTR | - | Request quote | |||
| 4 | FRAME, FRONT - FOR MACHINES WITH THREE SPOOL EQUIP | - | Request quote | |||
| 2 | BEARING | 1 | Request quote | |||
| 3 | SEAL, DUST | 2 | View product ↗ | |||
| 4 | RETAINER | 1 | Request quote | |||
| 5 | SHIM, 0.1MM | 8 | Request quote | |||
| 11 | SHIM, 0.5MM | 8 | View product ↗ | |||
| 6 | BOLT | 6 | View product ↗ | |||
| 7 | WASHER | 6 | View product ↗ | |||
| 8 | PLATE | 2 | Request quote | |||
| 9 | BOLT | 4 | View product ↗ | |||
| 10 | WASHER | 4 | View product ↗ | |||
| 11 | BUSHING | 1 | View product ↗ | |||
| 12 | SHAFT | 1 | Request quote | |||
| 13 | RETAINER | 1 | Request quote | |||
| 14 | BOLT | 4 | View product ↗ | |||
| 15 | WASHER | 4 | View product ↗ | |||
| 16 | BOLT | 6 | View product ↗ | |||
| 17 | WASHER | 6 | View product ↗ | |||
| 18 | BEARING | 1 | Request quote | |||
| 19 | SEAL, DUST | 2 | View product ↗ | |||
| 20 | RETAINER | 1 | Request quote | |||
| 21 | SHIM, 0.1MM | 12 | Request quote | |||
| 28 | SHIM, 0.5MM | 12 | Request quote | |||
| 22 | BOLT | 12 | View product ↗ | |||
| 23 | WASHER | 12 | View product ↗ | |||
| 24 | PLATE | 2 | Request quote | |||
| 25 | BOLT | 4 | View product ↗ | |||
| 26 | WASHER | 4 | View product ↗ | |||
| 27 | BUSHING | 1 | View product ↗ | |||
| 28 | SHAFT | 1 | Request quote | |||
| 29 | BUSHING | 1 | View product ↗ | |||
| 30 | RETAINER | 1 | Request quote | |||
| 31 | SHIM, 0.1MM | 8 | View product ↗ | |||
| 39 | SHIM, 0.5MM | 12 | Request quote | |||
| 32 | BOLT | 4 | View product ↗ | |||
| 33 | WASHER | 4 | View product ↗ | |||
| 34 | BOLT | 6 | View product ↗ | |||
| 35 | WASHER | 6 | View product ↗ | |||
| 36 | FITTING, GREASE | 2 | View product ↗ | |||
| 37 | SEAL, DUST | 8 | View product ↗ | |||
| 38 | SHIM, 1.5MM | 16 | Request quote | |||
| 39 | PIN | 2 | Request quote | |||
| 40 | BOLT | 2 | View product ↗ | |||
| 41 | WASHER | 2 | View product ↗ | |||
| 42 | COVER | 1 | Request quote | |||
| 43 | BOLT | 4 | Request quote | |||
| 44 | WASHER | 4 | View product ↗ | |||
| 45 | COVER | 2 | Request quote | |||
| 46 | BOLT | 8 | Request quote | |||
| 47 | WASHER | 8 | View product ↗ | |||
| 48 | BOLT | 12 | Request quote | |||
| 49 | WASHER | 24 | View product ↗ | |||
| 50 | NUT | 12 | View product ↗ | |||
| 51 | SPACER | 4 | Request quote | |||
| 52 | CUSHION | 4 | Request quote | |||
| 53 | WASHER | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
