Komatsu WA600-1LE Transmission Transfer Output Shaft Parts
Komatsu WA600-1LE transmission transfer output shaft parts for machine serial A51001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Torque Converter And Transmission / Transmission Transfer Output Shaft.
Checking current purchase options...

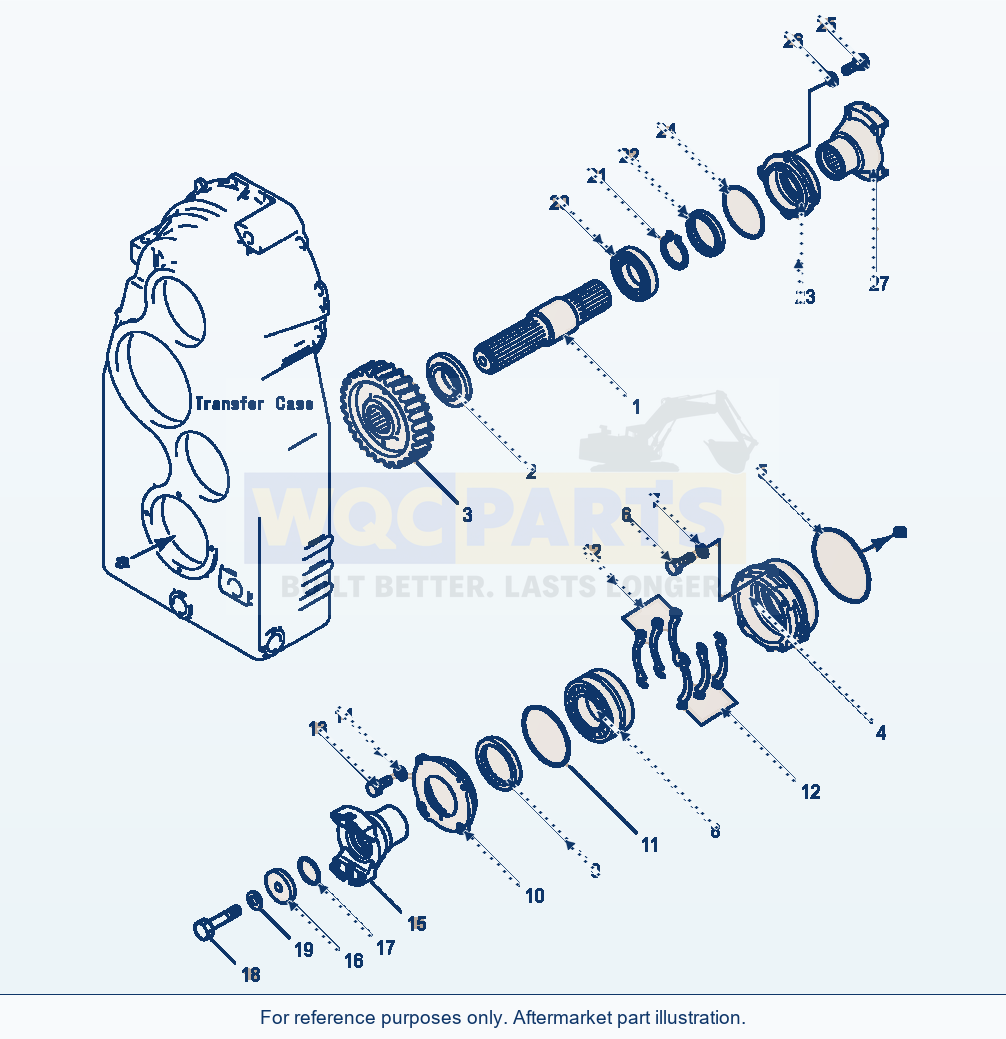

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SHAFT | 1 | Request quote | |||
| 2 | COLLAR | 1 | Request quote | |||
| 3 | GEAR | 1 | Request quote | |||
| 4 | CAGE | 1 | Request quote | |||
| 5 | O-RING, CAGEF1 | 1 | View product ↗ | |||
| 6 | BOLT, MOUNT CAGE | 4 | Request quote | |||
| 7 | WASHER | 4 | View product ↗ | |||
| 8 | BEARING | 1 | Request quote | |||
| 9 | SEAL, OIL - FRONT COUPLING CAGEF1 | 1 | Request quote | |||
| 10 | CAGE, FRONT COUPLING | 1 | Request quote | |||
| 11 | O-RING, FRONT COUPLING CAGEF1 | 1 | View product ↗ | |||
| 12 | SHIM ASSEMBLY, FRONT COUPLINGF1 | 1 | View product ↗ | |||
| 13 | SHIM, 0.15MM | 4 | Request quote | |||
| 14 | SHIM, 0.2MM | 4 | Request quote | |||
| 15 | SHIM, 0.3MM | 4 | Request quote | |||
| 13 | BOLT, MOUNT CAGE | 4 | Request quote | |||
| 14 | WASHER | 4 | View product ↗ | |||
| 15 | COUPLING, FRONT | 1 | Request quote | |||
| 16 | HOLDER, FRONT COUPLING | 1 | Request quote | |||
| 17 | O-RING, HOLDER - FRONT COUPLINGF1 | 1 | View product ↗ | |||
| 18 | BOLT, MOUNT FRONT COUPLING | 1 | Request quote | |||
| 19 | WASHER | 1 | Request quote | |||
| 20 | BEARING | 1 | View product ↗ | |||
| 21 | RING, SNAP | 1 | View product ↗ | |||
| 22 | SEAL, OIL - REAR COUPLINGF1 | 1 | Request quote | |||
| 23 | CAGE, REAR COUPLING | 1 | Request quote | |||
| 24 | O-RING, REAR COUPLING CAGEF1 | 1 | View product ↗ | |||
| 25 | BOLT, MOUNT CAGE | 4 | Request quote | |||
| 26 | WASHER | 4 | View product ↗ | |||
| 27 | COUPLING, REAR | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TRANSMISSION ASSEMBLY (SEE PG 02-014)
SERVICE KIT, TRANSMISSION (SEE PG 02-060)
F2 - INCLUDED IN SERVICE KIT 426-15-05200.
Using Komatsu WA600-1LE Transmission Transfer Output Shaft Parts
Use the Komatsu WA600-1LE Transmission Transfer Output Shaft Parts listing to identify aftermarket replacement parts within the torque converter and transmission section. This wheel loader application is listed for machine serial A51001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 30 listed part occurrences, including shaft (reference 426-15-13320), collar (reference 425-15-13260) and gear (reference 426-15-13242). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
