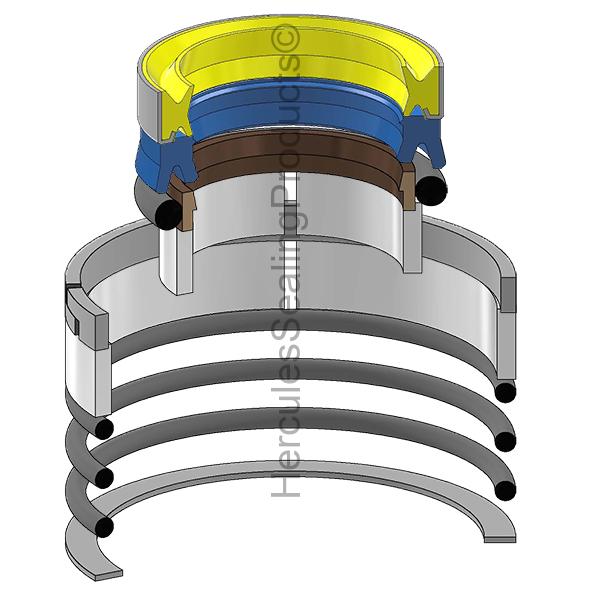

Caterpillar 1113302 Seal Kit
Shipping calculated at checkout.
Caterpillar 1113302 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number CTC-1113302. Catalog description: 2 X 4.
Product Details
- Hercules part number: CTC-1113302
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: Caterpillar
- Approximate weight: 0.287 lb
- Catalog data source: 2026 US Mobile Kit Catalog, 2026 US Cylinder Catalog
Catalog Application Data
- Application reference: Angle, Cylinder
- Equipment type: Backhoe Loaders; Crawler Dozers; Forestry - Tree Harvesters; Loaders - Wheel; Skidders; Telehandlers
- Model or series reference: 527, 1676, 82
- Style / kit type: CTC-1113302
- Catalog page reference: 103, 104, 114, 120, 121, 122, 134, 143, 153, 155, 159, 348, 350, 412, 415, 416, 417, 478, 480, 487, 491, 14
Understanding This Seal Kit
- Catalog identification code: P-UB-10
- Wiper code P: press-in wiper
- Rod seal code UB: U-seal with buffer
- Piston seal code 10: piston seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
The Hercules catalog lists this code against CTC-1113302. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the CTC-1113302 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
