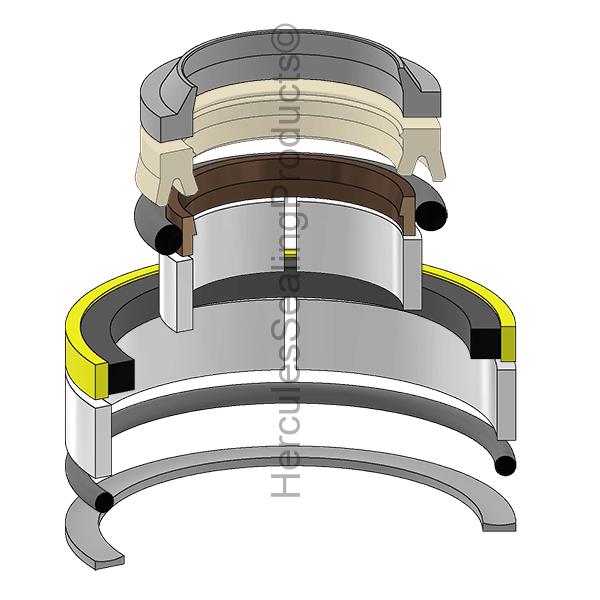

Caterpillar 9X2020 Seal Kit
Shipping calculated at checkout.
Caterpillar 9X2020 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number CTC-9X2020. Catalog description: 2-3/4 X 3-3/4.
Product Details
- Hercules part number: CTC-9X2020
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: Caterpillar
- Approximate weight: 0.259 lb
- Catalog data source: 2026 US Mobile Kit Catalog
Catalog Application Data
- Equipment type: Backhoe Loaders; Telehandlers
- Catalog page reference: 120, 121, 132, 133, 514
Understanding This Seal Kit
- Catalog identification code: I-UB-10
- Wiper code I: insert wiper
- Rod seal code UB: U-seal with buffer
- Piston seal code 10: piston seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
The Hercules catalog lists this code against CTC-9X2020. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the CTC-9X2020 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
