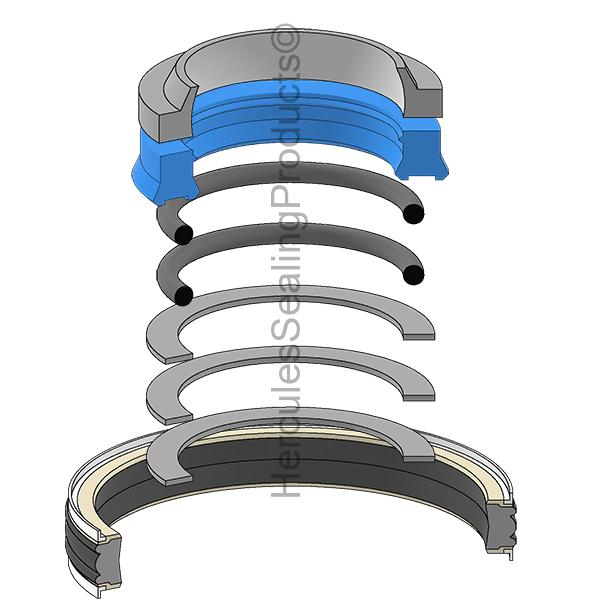

Effer Cranes 2565990 Seal Kit
Shipping calculated at checkout.
Effer Cranes 2565990 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number EF-2565990. Catalog description: SK-I-U-15-70x90 mm.
Product Details
- Hercules part number: EF-2565990
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: Effer Cranes
- Approximate weight: 0.267 lb
- Catalog data source: 2026 US Mobile Kit Catalog
Catalog Application Data
- Equipment type: Telehandlers
- Catalog page reference: 540
Understanding This Seal Kit
- Wiper code I: insert wiper
- Rod seal code U: U-seal
- Piston seal code 15: five-piece piston seal
- Rod diameter: 70 mm
- Cylinder bore: 90 mm
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
These terms explain the Hercules identification code shown above. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the EF-2565990 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
