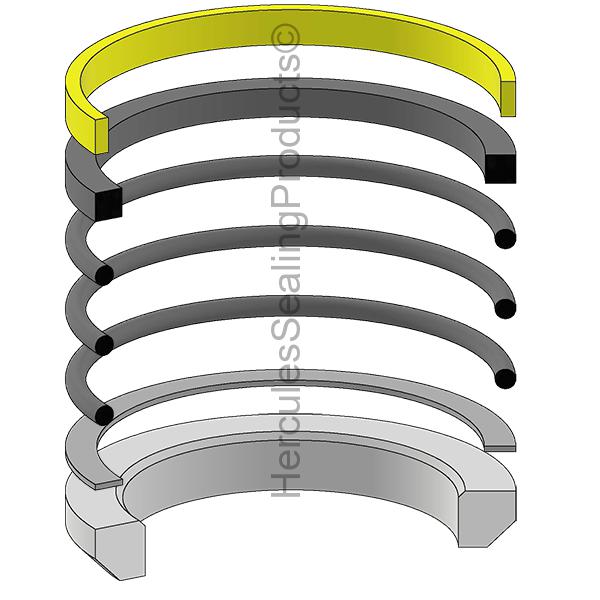

John Deere Ah212092 Seal Kit
Shipping calculated at checkout.
John Deere Ah212092 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number JD-AH212092. Catalog description: I-PK-N-N-10-80.00.
Product Details
- Hercules part number: JD-AH212092
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: John Deere
- Approximate weight: 0.069 lb
- Catalog data source: 2026 US Mobile Kit Catalog
Catalog Application Data
- Equipment type: Backhoe Loaders; Crawler Dozers/Loaders; Loaders - Skid Steer; Skidders
- Model or series reference: 650/1
- Catalog page reference: 730, 732, 733, 734, 735, 737, 738, 739, 740, 742, 743, 744, 746, 747, 748, 749, 750, 751, 752, 787, 789, 79...
Understanding This Seal Kit
- Catalog identification code: N-N-10
- Wiper code N: no wiper
- Rod seal code N: no rod seal
- Piston seal code 10: piston seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
The Hercules catalog lists this code against JD-AH212092. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the JD-AH212092 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
