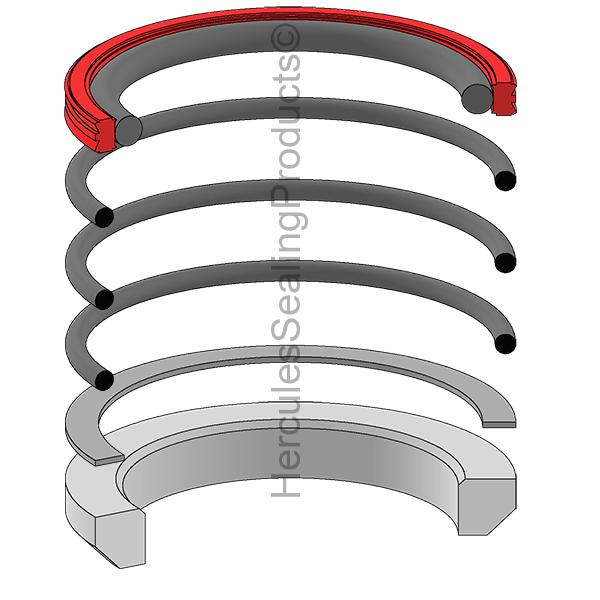

John Deere Ahc16682 Seal Kit
Shipping calculated at checkout.
John Deere Ahc16682 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number JD-AHC16682. Catalog description: PK-N-N-10-63.00.
Product Details
- Hercules part number: JD-AHC16682
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: John Deere
- Approximate weight: 0.025 lb
- Catalog data source: 2026 US Mobile Kit Catalog
Catalog Application Data
- Equipment type: Crawler Dozers/Loaders; Forestry - Tree Harvesters; Skidders
- Model or series reference: 650/1
- Catalog page reference: 756, 781, 782, 784, 785, 836
Understanding This Seal Kit
- Catalog identification code: N-N-10
- Wiper code N: no wiper
- Rod seal code N: no rod seal
- Piston seal code 10: piston seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
The Hercules catalog lists this code against JD-AHC16682. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the JD-AHC16682 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
