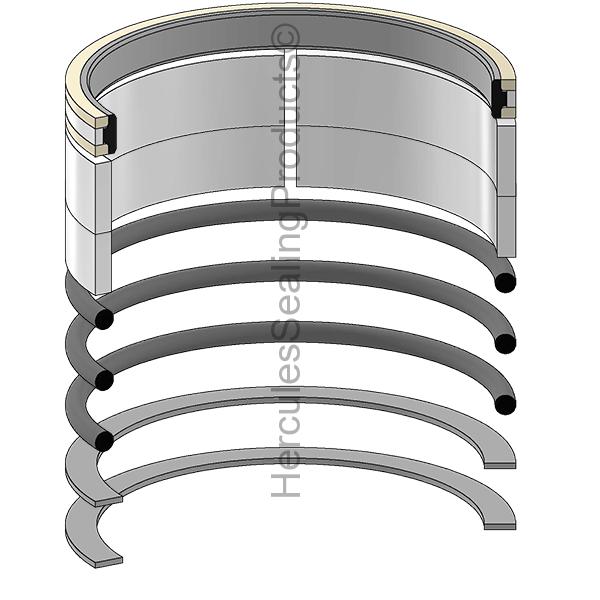

John Deere Re14022 Seal Kit
Shipping calculated at checkout.
John Deere Re14022 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number JD-RE14022. Catalog description: 6-1/4 Piston Kit.
Product Details
- Hercules part number: JD-RE14022
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: John Deere
- Approximate weight: 0.482 lb
- Catalog data source: 2026 US Mobile Kit Catalog
Catalog Application Data
- Equipment type: Backhoe Loaders; Skidders
- Model or series reference: 650/1
- Catalog page reference: 747, 839
Understanding This Seal Kit
- Catalog identification code: N-N-14
- Wiper code N: no wiper
- Rod seal code N: no rod seal
- Piston seal code 14: four-piece capped T-seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
The Hercules catalog lists this code against JD-RE14022. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the JD-RE14022 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
