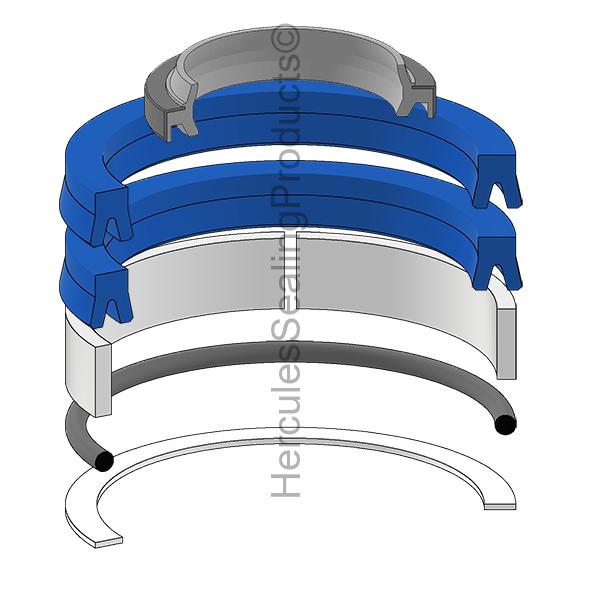

Toyota 04654-10030-71 Seal Kit
Shipping calculated at checkout.
Toyota 04654-10030-71 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number TOY-04654-10030-71. Catalog description: 35 X 45 mm.
Product Details
- Hercules part number: TOY-04654-10030-71
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: Toyota
- Approximate weight: 0.081 lb
- Catalog data source: 2026 US Mobile Kit Catalog, 2026 US Industrial Catalog
Catalog Application Data
- Equipment type: Skidders
- Style / kit type: 35 X 45 mm
- Catalog page reference: 1107, 187
Understanding This Seal Kit
- Catalog identification code: P-U-4
- Wiper code P: press-in wiper
- Rod seal code U: U-seal
- Piston seal code 4: one U-seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
The Hercules catalog lists this code against TOY-04654-10030-71. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the TOY-04654-10030-71 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
