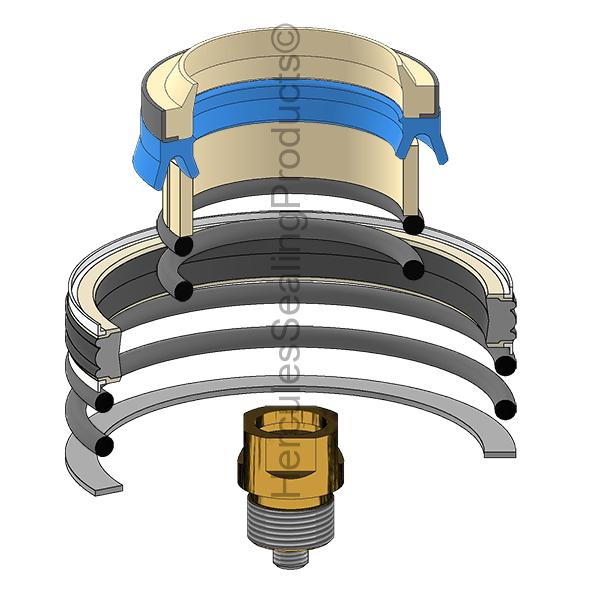

Volvo 11704253 Seal Kit is a cylinder seal kit available from WQC Parts.
This listing uses Hercules part number VME-11704253. Catalog description: SK-P-U-15-40.00x80.00.
Product Details
- Hercules part number: VME-11704253
- Product type: Hydraulic cylinder seal kit
- Reference brand/application: Volvo
- Approximate weight: 0.61 lb
- Catalog data source: 2026 US Mobile Kit Catalog
Catalog Application Data
- Equipment type: Loaders - Wheel; Motor Graders
- Catalog page reference: 1154, 1155, 1161, 1164, 1167, 1168, 1171, 1172, 1173, 1174, 1175, 1178, 1181
Understanding This Seal Kit
- Wiper code P: press-in wiper
- Rod seal code U: U-seal
- Piston seal code 15: five-piece piston seal
The code separates the wiper, rod-seal and piston-seal arrangements so you can compare them with the cylinder being repaired. A wiper helps exclude dirt at the rod entry; rod seals and piston seals fit different locations in the cylinder.
These terms explain the Hercules identification code shown above. Match the kit reference to the original assembly; the code is an identification aid, not a complete packing list.
Fitment Verification
Before ordering, confirm the VME-11704253 reference against your OEM reference number, machine model, cylinder location, bore and rod size, pump/motor series, and serial-number range. Manufacturer names and part numbers are used for identification and fitment reference only. If you are unsure, compare the old parts, measurements, and parts-book callout before installation.
